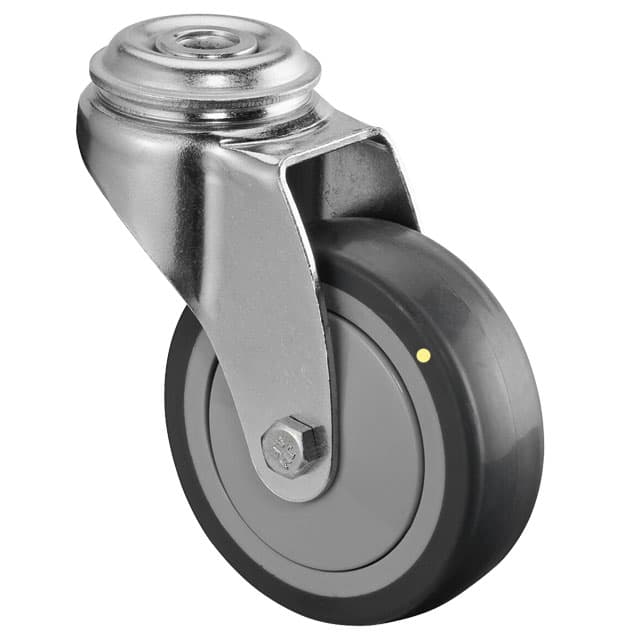

Apparatus castor with hole TPE rubber-wheel grey light design swivel castor wheel Ø 75 electrically conductive
Manufacturer part no. 77713075EL
$24.22≈ 21.03 €
Price summary
Listed by MÄDLER at €21.03. Delivered to France, including shipping, VAT and any customs duty, it comes to about €43.24. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €21.03 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.21 |
| Total delivered | €43.24 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 260 g |

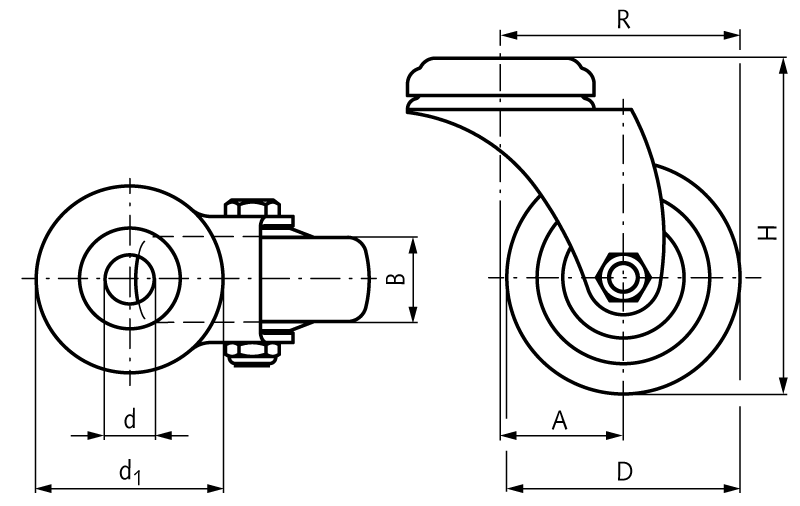

Other characteristics
| A | 38 mm |
| B | 24 mm |
| D | 75 mm |
| D1 | 43.2 mm |
| H | 103 mm |
| Load capacity | 60 kg |
| R | 75.5 mm |
| Suitable swivel castor with brakes part number | 77 714 075 EL |
Description
Material: Fork: steel plate, zinc-plated. Tread: thermoplastic rubber TPE, grey, electrical conductive and antistatic (104 Ω). Wheel body: plastic, screwed. Wheel mounting: ball bearing. Swivel bearing: double ball wreath. For indoor use. Low-noise operation with low rolling and swivelling resistance. Non-marking. The tread is slightly oily and can cause contact discolouration on sensitive surfaces. Temperature range: -20°C to +60°C. Note to electrical Antistatic and Conductivity: Wheels and castors are considered electrically antistatic, if the ohmic resistance is 107 Ω or less. Wheels and castors are considered electrically conductive, if the ohmic resistance is 104 Ω or less, even less than parts named antistatic. So, the parts which are named electrically conductive are also antistatic.
