MÄDLERMÄDLER· Mechanics & transmission

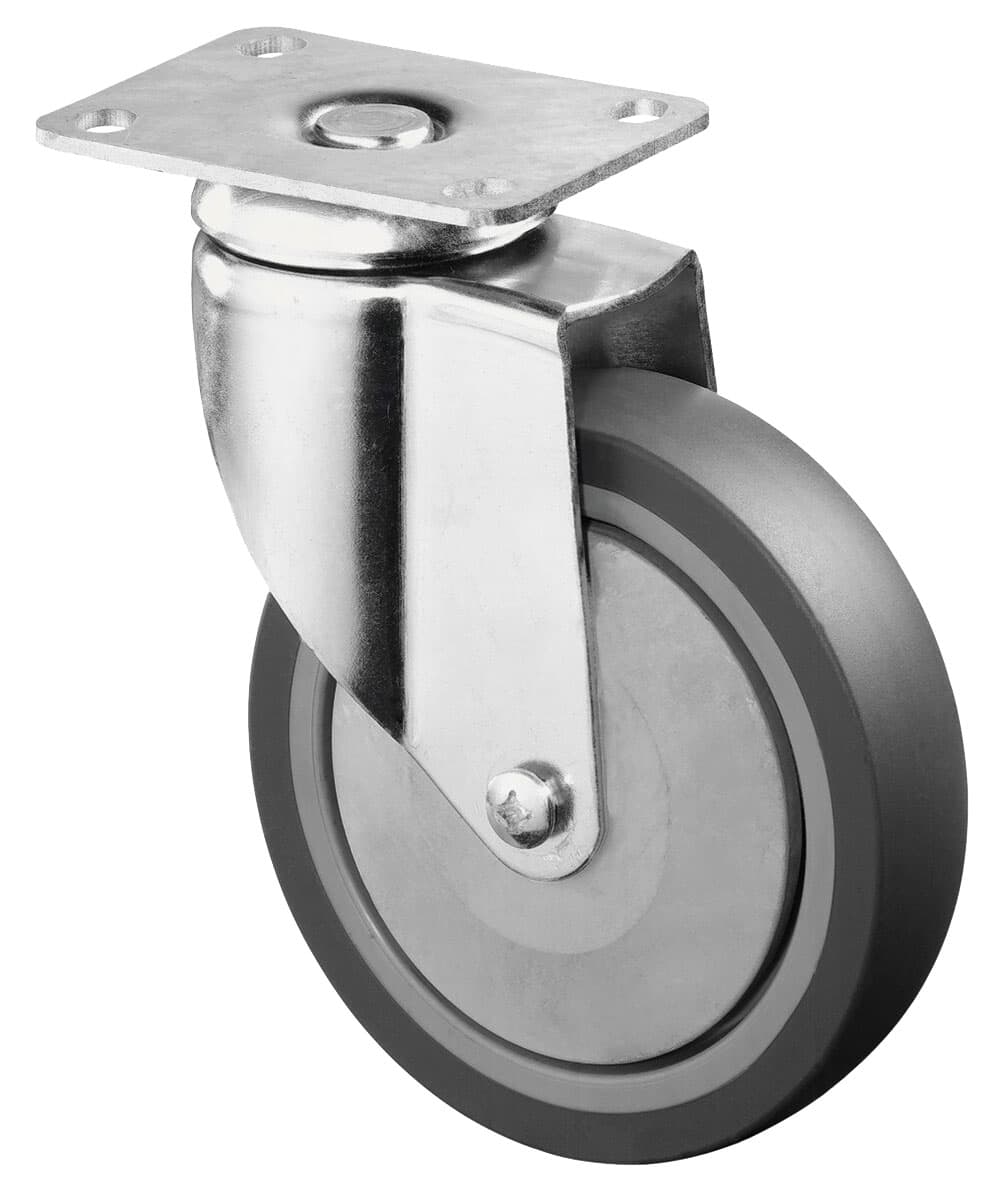

Apparatus castor with plate TPE-wheel rubber grey heavy design swivel castor wheel Ø 100
Manufacturer part no. 77715100
$28.57≈ 24.73 €
Price summary
Listed by MÄDLER at €24.73. Delivered to France, including shipping, VAT and any customs duty, it comes to about €47.68. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €24.73 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.95 |
| Total delivered | €47.68 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

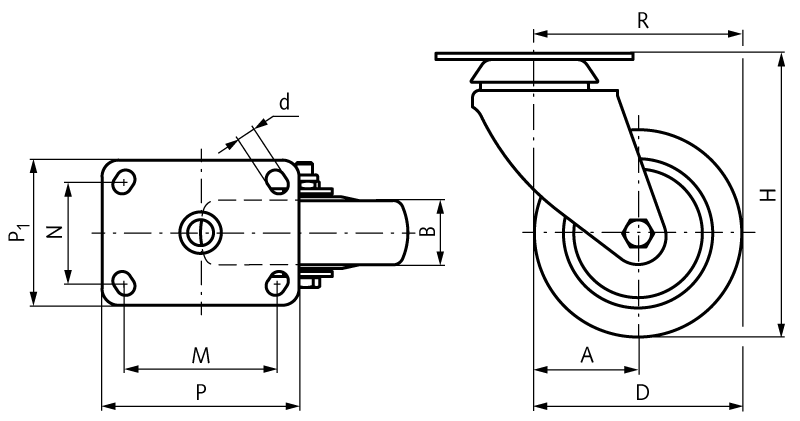

Mechanical
| Weight | 800 g |
Other characteristics
| A | 42 mm |
| B | 30 mm |
| D | 100 mm |
| H | 137 mm |
| Load capacity | 80 kg |
| M | 75 mm |
| N | 45 mm |
| P | 95 mm |
| P1 | 70 mm |
| R | 92 mm |
| Suitable fixed castor part number | 77 717 100 |
Description
Material: Fork: steel plate, zinc-plated. Tread: thermoplastic rubber TPE, grey. Wheel body: plastic, screwed. Wheel mounting: ball bearing. Swivel bearing: double ball wreath. For indoor use. Low-noise operation with low rolling and swivelling resistance. Non-marking. The tread is slightly oily and can cause contact discolouration on sensitive surfaces. Temperature range: -20°C to +60°C.
