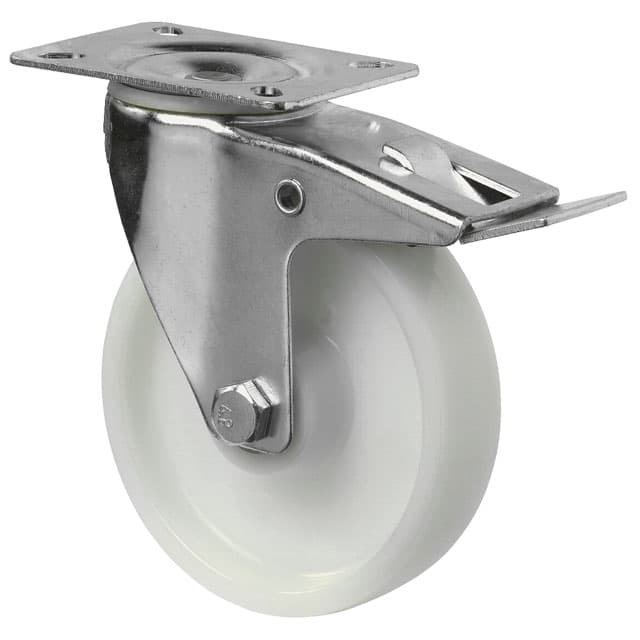

Transport castor with plate Plastic wheel white swivel castor wheel Ø 100
Manufacturer part no. 77721100
$20.67≈ 17.95 €
Price summary
Listed by MÄDLER at €17.95. Delivered to France, including shipping, VAT and any customs duty, it comes to about €39.54. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €17.95 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.59 |
| Total delivered | €39.54 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 600 g |
Other characteristics
| A | 34 mm |
| B | 32 mm |
| D | 100 mm |
| H | 128 mm |
| Load capacity | 125 kg |
| M | 84 mm |
| M1 | 64 mm |
| N | 76 mm |
| N1 | 56 mm |
| P | 104 mm |
| P1 | 80 mm |
| R | 84 mm |
| Suitable fixed castor part number | 77 723 100 |
| N2 | – |
Description
Material: Fork: steel plate, zinc-plated. Tread / Wheel body: Plastic Polyamide, cast in one piece, screwed. Wheel mounting: roller bearing. Swivel bearing: double ball wreath. For indoor and outdoor use. Largely resistant to salt, grease, acids and alkalis. No markings and very abrasion resistant. Temperature range: -20°C to +80°C (short-term -40°C bis +100°C). From +35°C the load-bearing capacity decreases.
