Transport castor with plate Elastic rubber wheel blue swivel castor wheel Ø 200
Manufacturer part no. 77741200
$98.32≈ 85.38 €
Price summary
Listed by MÄDLER at €85.38. Delivered to France, including shipping, VAT and any customs duty, it comes to about €120.46. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €85.38 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.08 |
| Total delivered | €120.46 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.66 kg |
Other characteristics

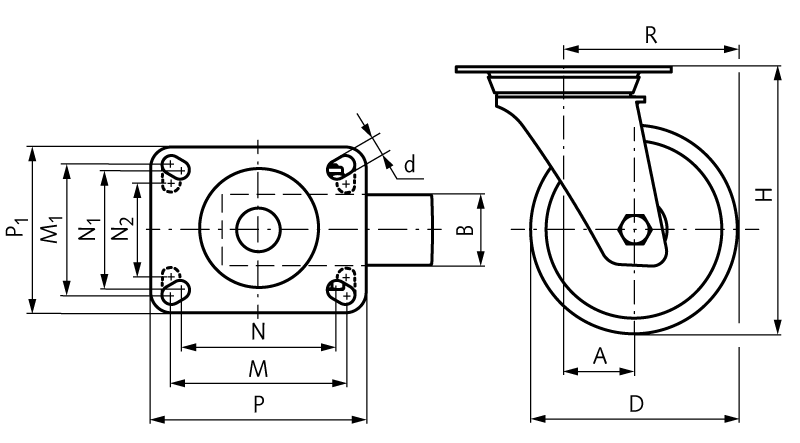

| A | 58 mm |
| B | 45 mm |
| D | 200 mm |
| H | 235 mm |
| Load capacity | 350 kg |
| M | 105 mm |
| M1 | 80 mm |
| N2 | 75 mm |
| P | 135 mm |
| P1 | 114 mm |
| R | 158 mm |
| Suitable fixed castor part number | 77 743 200 |
| N | – |
| N1 | – |
Description
Material: Fork: steel plate, zinc-plated. Tread: elastic rubber, blue. Wheel body: plastic, black, screwed. Wheel mounting: roller bearing. Swivel bearing: double ball wreath. For indoor and outdoor use. Excellent driving and operating comfort. Gentle on the floor and extremely abrasion resistant. (non-marking). Size 100 with thread guard. Temperature range: -20°C to +60°C.
