MÄDLERMÄDLER· Mechanics & transmission

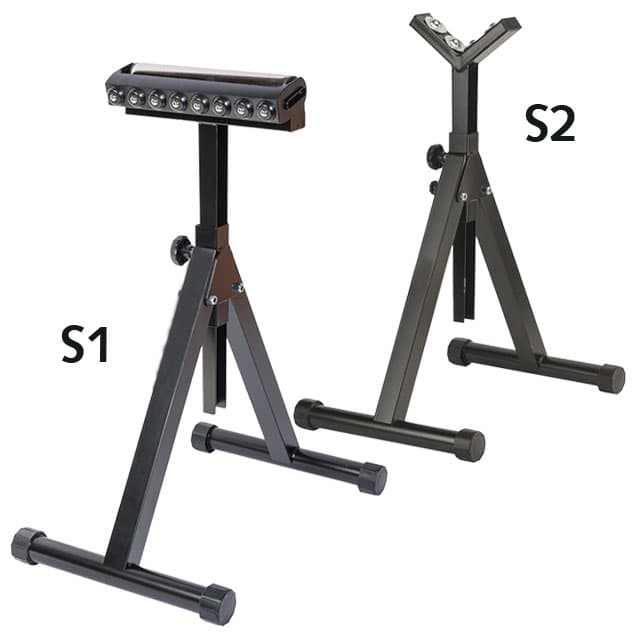

Universal roller stand with support roller and swivelling ball bar Load capacity 200kg
Manufacturer part no. 77790201
$277.54≈ 240.46 €
Manufacturer part no. 77790201
Listed by MÄDLER at €240.46. Delivered to France, including shipping, VAT and any customs duty, it comes to about €306.55. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €240.46 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €51.09 |
| Total delivered | €306.55 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 11.4 kg |
| Ball castors | 8 |
| Idler diameter | 60 mm |
| Max height | 1 197 mm |
| Min height | 758 mm |
| Roll width | 350 mm |
| Load capacity | 200* |
| Type | S1 |
Material: Steel, black lacquered. Collapsible material stands with 2-foot construction for feeding material from sheets or bars. Type S1: Universal roller stand with castor and swivelling ball bar. Infinitely variable height adjustment. Ball bar with 8 balls. Type S2: Roller stand with V-shaped ball rollers, Ø 25mm. For poles with profile Ø from 2cm to 40cm. * Load per unit area over the entire support width. Type S2: If only 2 ball transfer units are loaded, the load capacity is half.
