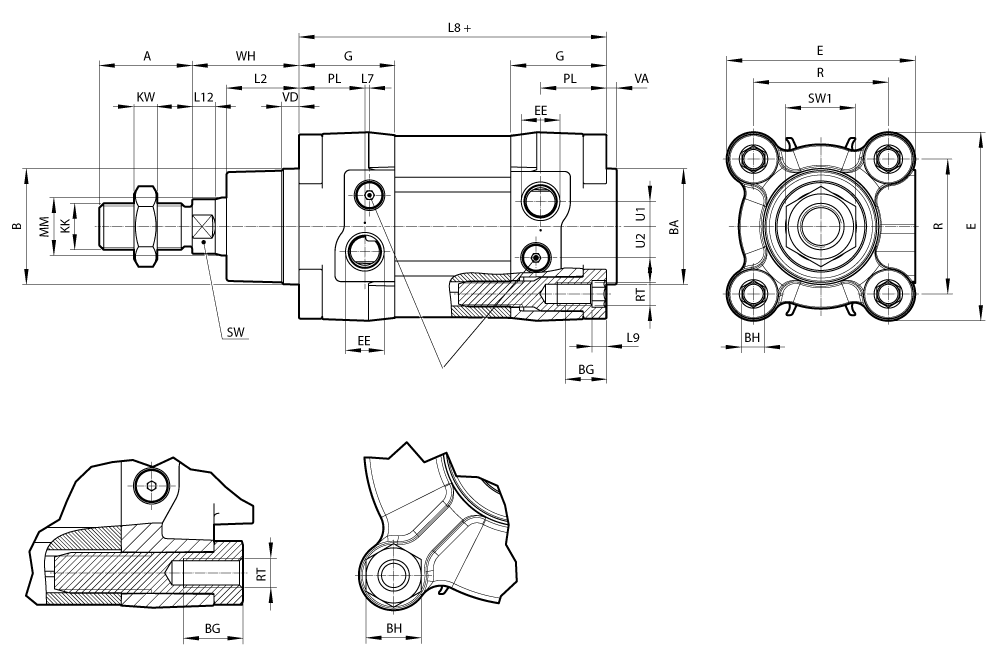

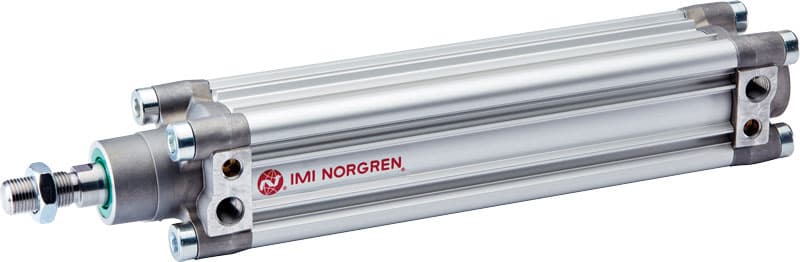

Double-acting standard cylinder ISO 15552 cylinder diameter 32mm stroke 25mm pressure max. 12 bar
Manufacturer part no. 80132025
$148.61≈ 129.06 €
Price summary
Listed by MÄDLER at €129.06. Delivered to France, including shipping, VAT and any customs duty, it comes to about €172.87. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €129.06 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €28.81 |
| Total delivered | €172.87 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Cushion length | 20 mm |
| Cylinder diameter | 32 mm |
| Housing width | 47 mm |
| Standard stroke | 25 mm |
| Theoretical forces at 6 bar pull | 414 N |
| Theoretical forces at 6 bar thrust | 482 N |
| Weight at 0 mm | 0.49 kg |
| Weight per 25 mm stroke | 0.06 kg |
| Connection | G 1/8″ |
| Initial cushion volume | 12.8 cm³ |
| Material | Aluminum |
| Surface | Anodised |
Description
Materials: Profile barrel: Anodised aluminium. End covers: Aluminium die-cast. Piston rod: Stainless steel (ferritic), Piston and piston rod seals: Polyurethane. O-ring seals: NBR. Medium: Compressed air, filtered, lubricated or non-lubricated. Standard: ISO 15552. Mode of operation: Double-acting with magnetic piston and adaptive end-of-stroke cushioning system ACS. Operating pressure:1 to 12 bar. Operating temperature: -20°C to +80°C max. Below +2°C please consider the air quality.
