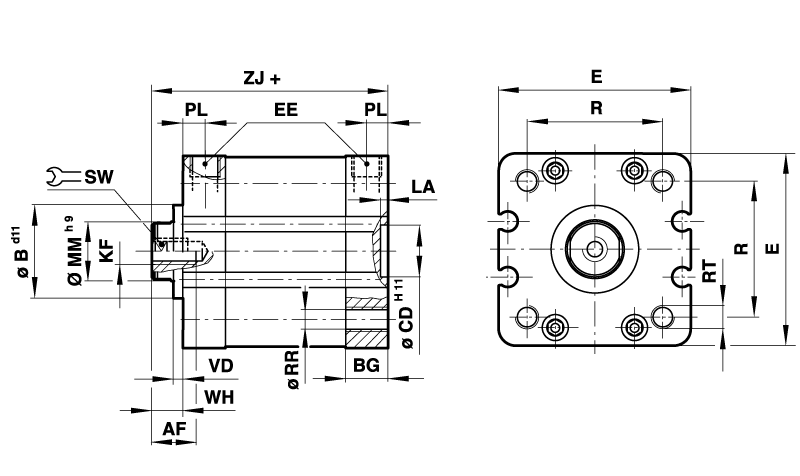

Double-acting compact cylinder with magnetic piston, cylinder diameter 40mm, travel 50mm
Manufacturer part no. 80340050
$152.36≈ 132.31 €
Price summary
Listed by MÄDLER at €132.31. Delivered to France, including shipping, VAT and any customs duty, it comes to about €176.77. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €132.31 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €29.46 |
| Total delivered | €176.77 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Cylinder diameter | 40 mm |
| Standard stroke | 50 mm |
| Theoretical forces at 6 bar pull | 633 N |
| Theoretical forces at 6 bar thrust | 754 N |
| Weight at 0 mm | 0.3 kg |
| Weight per 5 mm stroke | 0.02 kg |
| Connection | G 1/8″ |
| Material | Aluminum |
| Surface | Anodised |
Description
Materials: Profile barrel: Anodised aluminium. End covers: Aluminium die-cast. Piston rod: Stainless steel (Ø 20 and 25 mm austenitic, Ø 32 and 40 mm ferritic). Piston rod seal: Polyurethane. Piston seal: NBR. O-ring seals: NBR. Medium: Compressed air, filtered, lubricated or non-lubricated. Standard: ISO 21287. Mode of operation: double-acting, magnetic piston, piston rod with internal thread, buffer cushioning. Operating pressure: 1 to 10 bar. Operating temperature: -5°C* to +80°C max. *With temperatures below +2°C please consider the air quality. On request also available with external thread.
