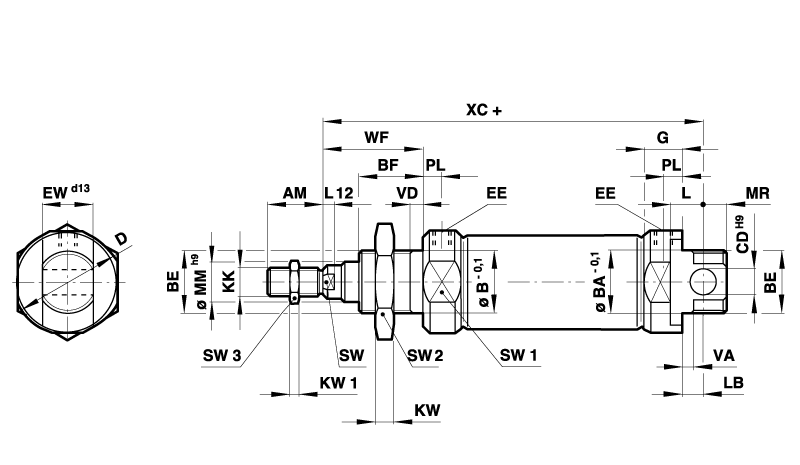

Double-acting round cylinder in accordance with ISO 6432 with magnetic piston, cylinder diameter 10mm, travel 25mm
Manufacturer part no. 80510025
$80.33≈ 69.76 €
Price summary
Listed by MÄDLER at €69.76. Delivered to France, including shipping, VAT and any customs duty, it comes to about €101.71. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €69.76 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.95 |
| Total delivered | €101.71 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Cylinder diameter | 10 mm |
| Standard stroke | 25 mm |
| Theoretical forces at 6 bar pull | 39.6 N |
| Theoretical forces at 6 bar thrust | 47.1 N |
| Weight at 0 mm | 0.034 kg |
| Weight per 25 mm stroke | 0.007 kg |
| Connection | M 5 |
| Material | Stainless steel / Aluminum |
| Surface | Blank |
Description
Materials: Profile Barrel: Stainless Steel (austenitic). End Covers: Anodised Aluminium, Piston Rod: Stainless Steel (austenitic). Wiper: Polyurethane, Buffer cushioning: Polyurethane, Seals: NBR. Medium: Compressed air, filtered, lubricated or non-lubricated. Standard: ISO 6432. Mode of Operation: Double-acting with magnetic piston and buffer pushioning. Operating pressure: 1 to 10 bar. Operating temperature: 80°C max.
