MÄDLERMÄDLER· Pneumatic Elements

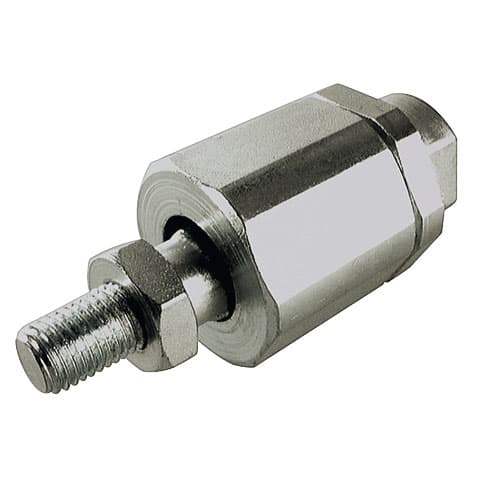

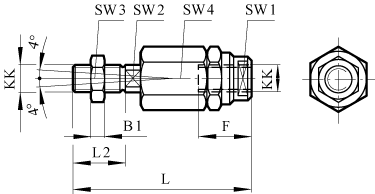

Beam coupling for cylinder diameter 50/63mm thread M16x1,5
Manufacturer part no. 81000050
$75.99≈ 65.99 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €65.99 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.20 |
| Total delivered | €97.19 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 650 g |
Other characteristics
| Total length | 106 mm |
| Cylinder diameter | 50/63 mm |
| Material | Steel |
| Surface | Zinc-plated |
| Thread size | M16x1.50 mm |
Description
Materials: Housing: Steel, zinc plated. Bolt: Steel, hardened. Nut: Steel, zinc plated. Mounting element at the piston rod.
