MÄDLERMÄDLER· Pneumatic Elements

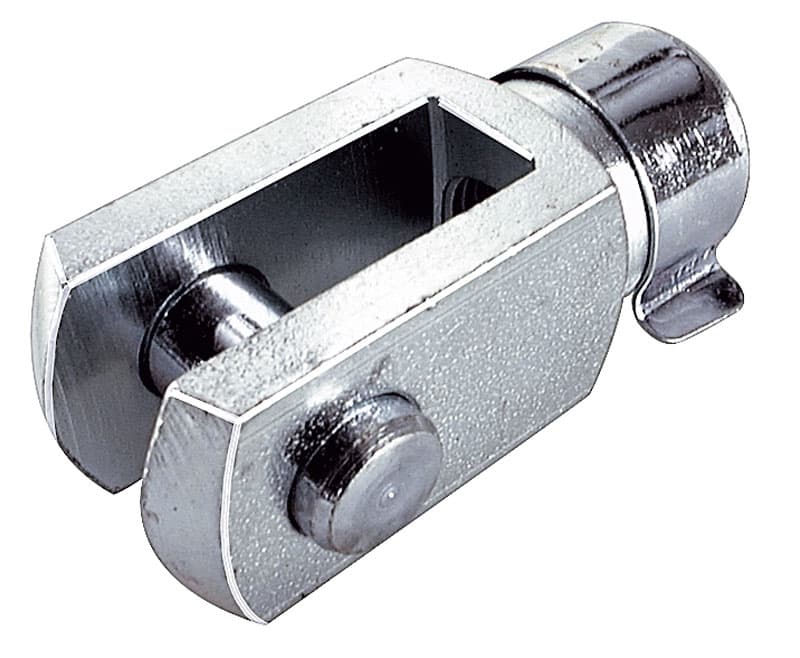

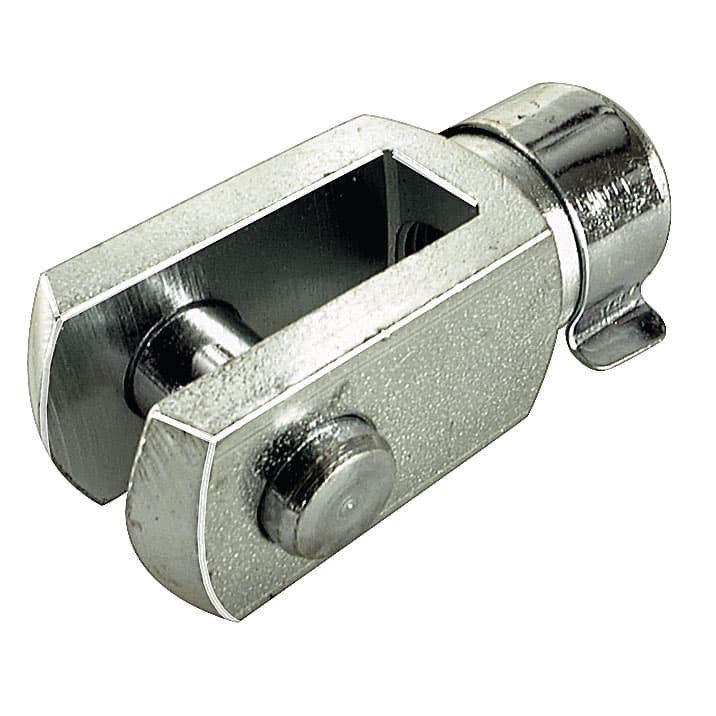

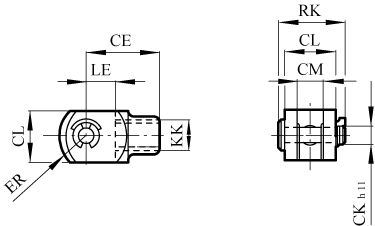

Fork head for cylinder diameter 25/32mm M10x1,25
Manufacturer part no. 81000325
$8.61≈ 7.48 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €7.48 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.50 |
| Total delivered | €26.98 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 100 g |
Other characteristics
| Bolt diameter | 10 mm |
| Inner width | 10 mm |
| Outer width | 20 mm |
| Cylinder diameter | 25/32 mm |
| Material | Steel |
| Surface | Zinc-plated |
| Thread size | M10x1.25 |
Description
Materials: Mounting: Steel, zinc plated. Bolt: Steel, zinc plated. Mounting element at the piston rod.
