MÄDLERMÄDLER· Pneumatic Elements

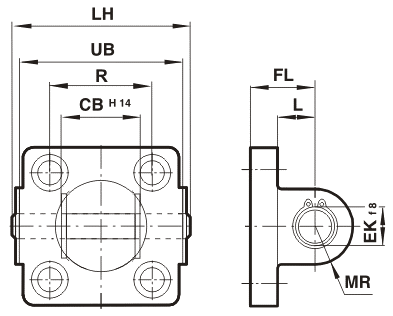

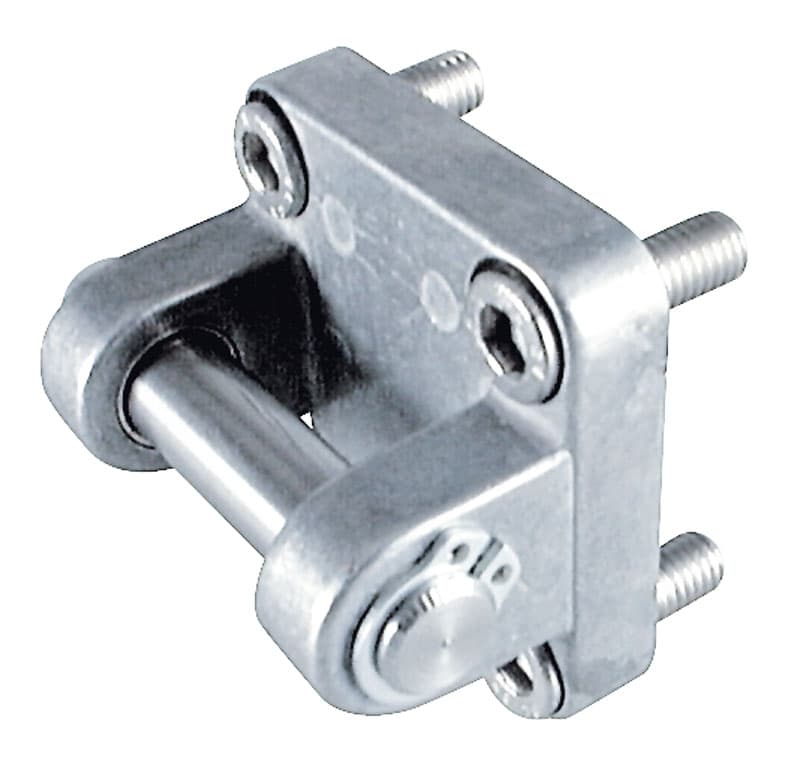

Rear clevis for cylinder diameter 40mm
Manufacturer part no. 81000740
$23.90≈ 20.76 €
In stock — 25 unitslead time 14 d
Estimated landed cost
| Item | €20.76 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.15 |
| Total delivered | €42.91 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 160 g |
Other characteristics
| Bolt diameter | 12 mm |
| Bolt length | 60 mm |
| Cylinder diameter | 40 mm |
| Width | 52 mm |
| Material | Aluminum / Stainless steel |
| Surface | Blank |
Description
Materials: Mounting: Aluminium die-cast. Screws: Steel, zinc plated. Bolts: Stainless steel. Mounting element at the end cover.
