MÄDLERMÄDLER· Pneumatic Elements

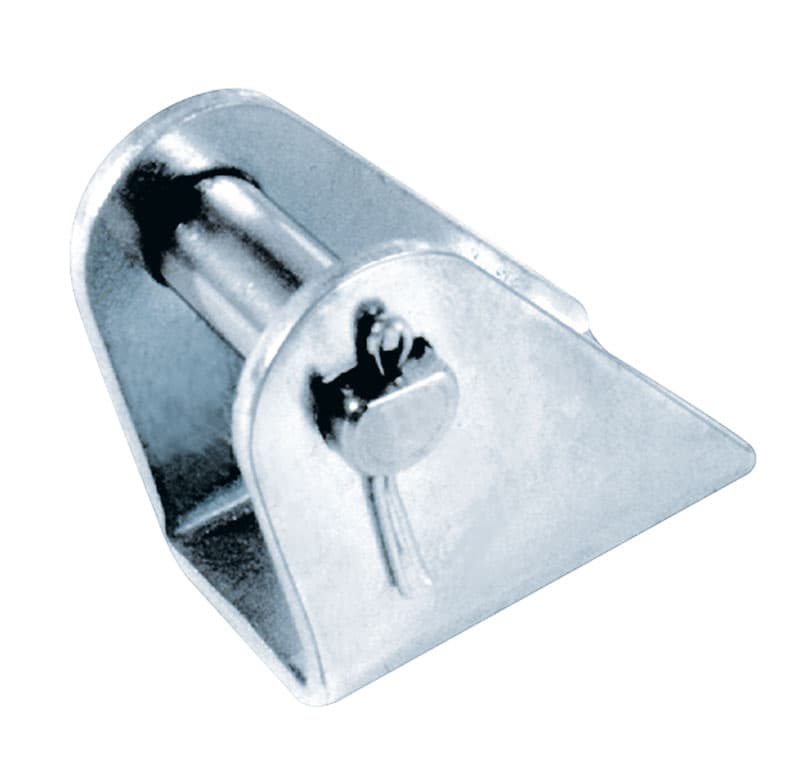

Rear hinge mounting with cotter pin for cylinder diameter 12/16mm
Manufacturer part no. 81002212
$16.61≈ 14.42 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €14.42 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.88 |
| Total delivered | €35.30 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

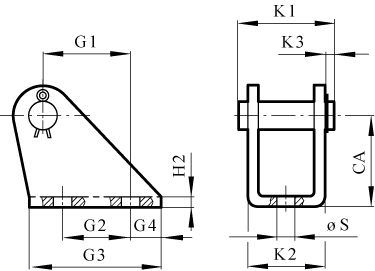

Specifications (automatically extracted)
Mechanical
| Weight | 20 g |
Other characteristics
| Bolt diameter | 6 mm |
| Bolt length | 20 mm |
| Length of mounting surface | 30 mm |
| Thickness | 1.5 mm |
| Width of mounting surface | 15 mm |
| Cylinder diameter | 12/16 mm |
| Material | Steel / Stainless steel |
| Surface | Blank |
Description
Materials: Mounting: Steel, zinc-plated. Bolts: Stainless Steel. Mating bracket for rear end mounting.
