MÄDLERMÄDLER· Motors & actuators

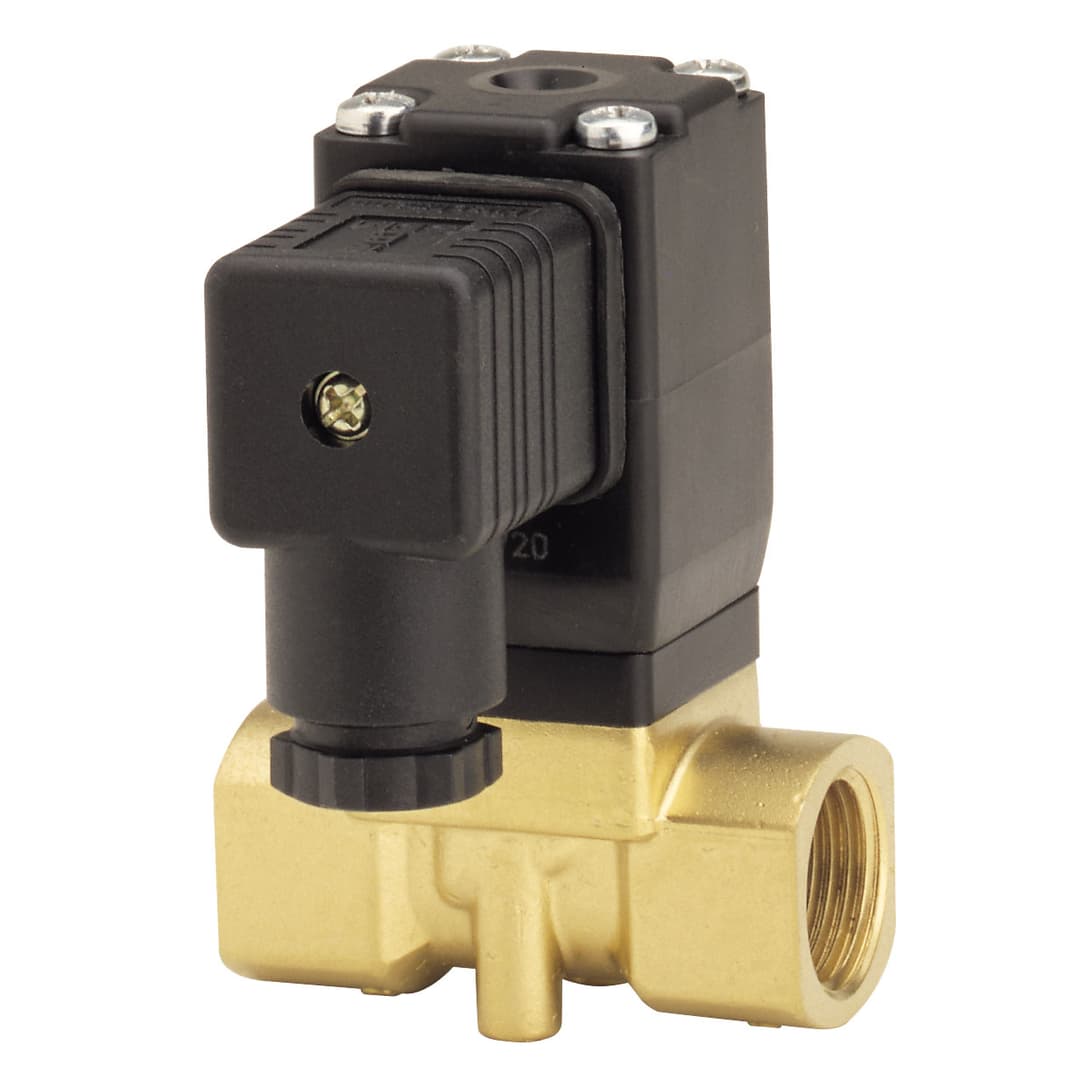

2/2 solenoid valve DN 20 port G3/4 230V 50/60Hz
Manufacturer part no. 85123412
$396.93≈ 343.54 €
Price summary
Listed by MÄDLER at €343.54. Delivered to France, including shipping, VAT and any customs duty, it comes to about €430.25. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €343.54 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €71.71 |
| Total delivered | €430.25 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 230 V |
Mechanical
| Weight | 1 kg |
Other characteristics
| Height | 115 mm |
| Length | 80 mm |
| Nominal width | 20 mm |
| Op pressure max. | 10 bar |
| Thread length | 16 mm |
| Connection | G3/4 |
| Kv value base | 5.8 m3/h |
| Material | Brass / Plastic |
| Surface | Blank |
| Voltage | 230 V 50/60Hz |
Description
Material: Housing: Brass. Seat seal: NBR. Internal parts: Stainless steel, PVDF, Brass. – For neutral gaseous and liquid fluids. – Electromagnetically actuated valve, with forced valve lifting. – Diaphragm valves. – Connection internal thread G3/4 and G1. – Operating pressure 0 to 10 bar (up to 25 mm²/s cSt). For contaminated fluids insertion of a strainer is recommended. Description (standard unit) Solenoid valve for, e.g., air , water, oil. Switching function: Normally closed. Flow direction: determined. Fluid temperature: -10°C to max. +90°C. Ambient temperature: -10°C to max. +50°C. Mounting position: optional, preferably solenoid vertical on top. Features – High flow rate. – For rugged applications. – Damped operation. – Suitable for vacuum. – For systems with low or changing pressure difference. – Valve works without minimum pressure difference (Zero Delta P). – Solenoid can be replaced without tools.
