MÄDLERMÄDLER· Pneumatic Elements

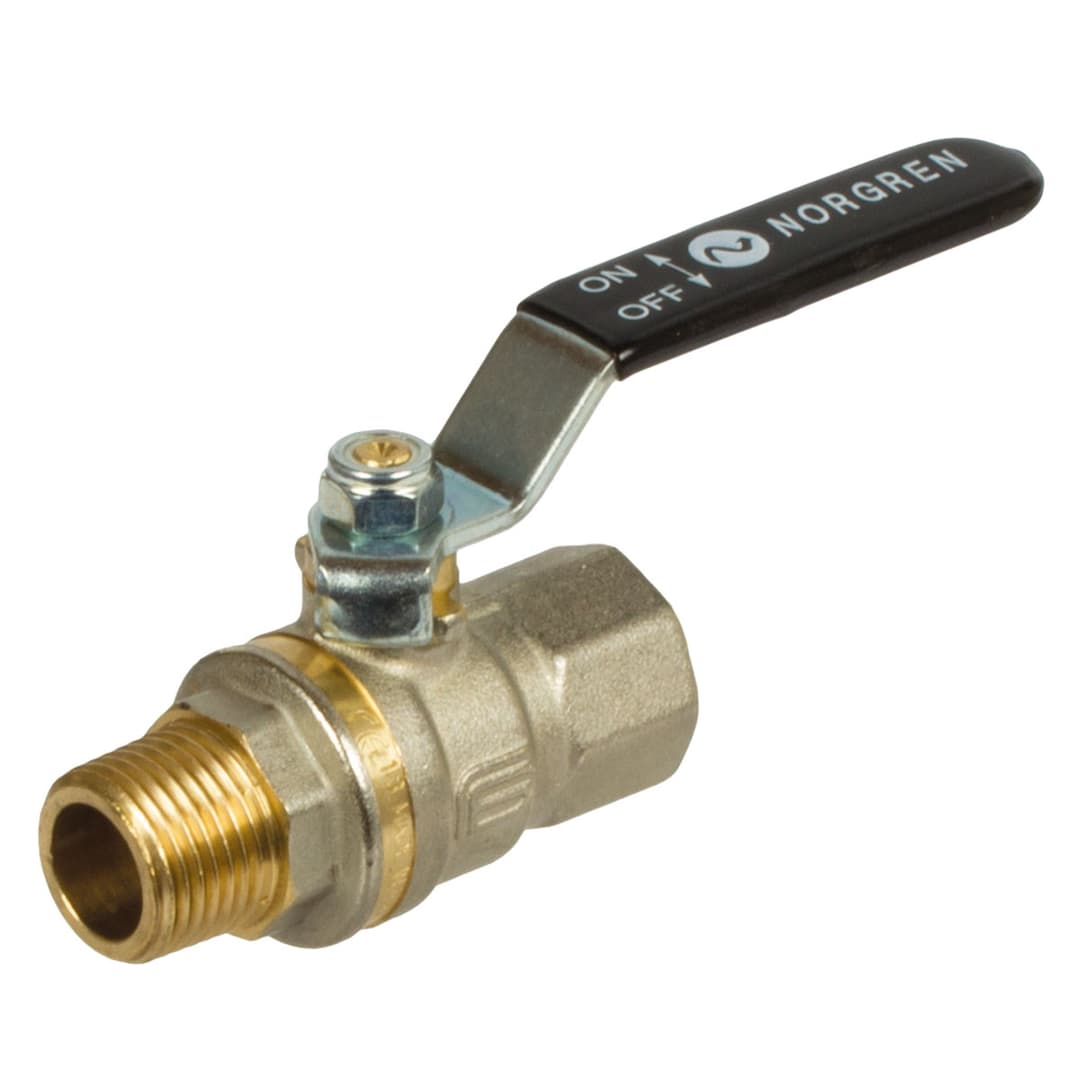

Ball valve exhausting made of brass, full bore thread G1/2
Manufacturer part no. 86502248
$16.05≈ 13.94 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €13.94 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.79 |
| Total delivered | €34.73 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 212 g |
Other characteristics
| Distance axis to handle | 40 mm |
| Inner diameter | 15 mm |
| Length of handle | 85 G |
| Outer diameter housing | 30 mm |
| Thread length inner thread | 9.5 mm |
| Thread length outer thread | 9.5 mm |
| Total length | 65 mm |
| Wrench size | 25 mm |
| Inner thread size | G 1/2″ |
| Material | Brass |
| Outer thread size | G 1/2″ |
| Surface | Nickel-plated |
Description
Materials: Housing: Brass, nickel-plated. Seat: PTFE, O-ring seals: Viton. Operating pressure: 0 to 45 bar. Operating temperature: -20°C to 150°C.
