MÄDLERMÄDLER· Pneumatic Elements

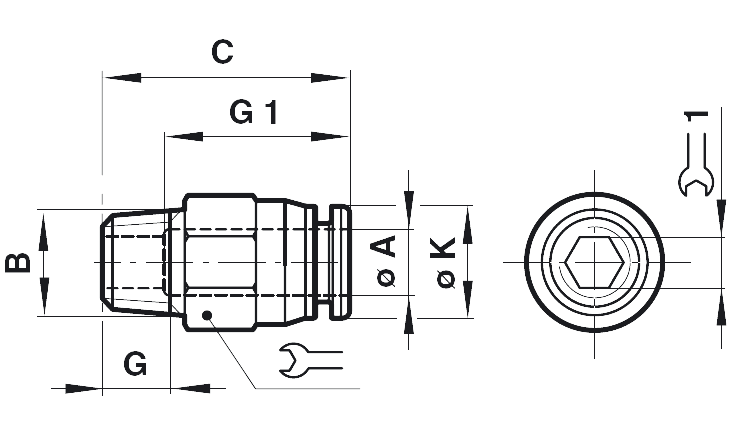

Straight adaptor tube outer diameter 6mm, thread R1/8
Manufacturer part no. 86620618
$2.76≈ 2.40 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €2.40 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.48 |
| Total delivered | €20.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 10.5 g |
Other characteristics
| Hose diameter | 6 mm |
| Length | 22 mm |
| Thread length | 8 mm |
| Wrench size | 12 mm |
| Material | Brass |
| Surface | Nickel-plated |
| Thread size | R 1/8″ |
Description
Material: Brass, nickle-plated. • Operating pressure: max. 10 bar. • Vacuum: max. -1 bar.
