MÄDLERMÄDLER· Pneumatic Elements

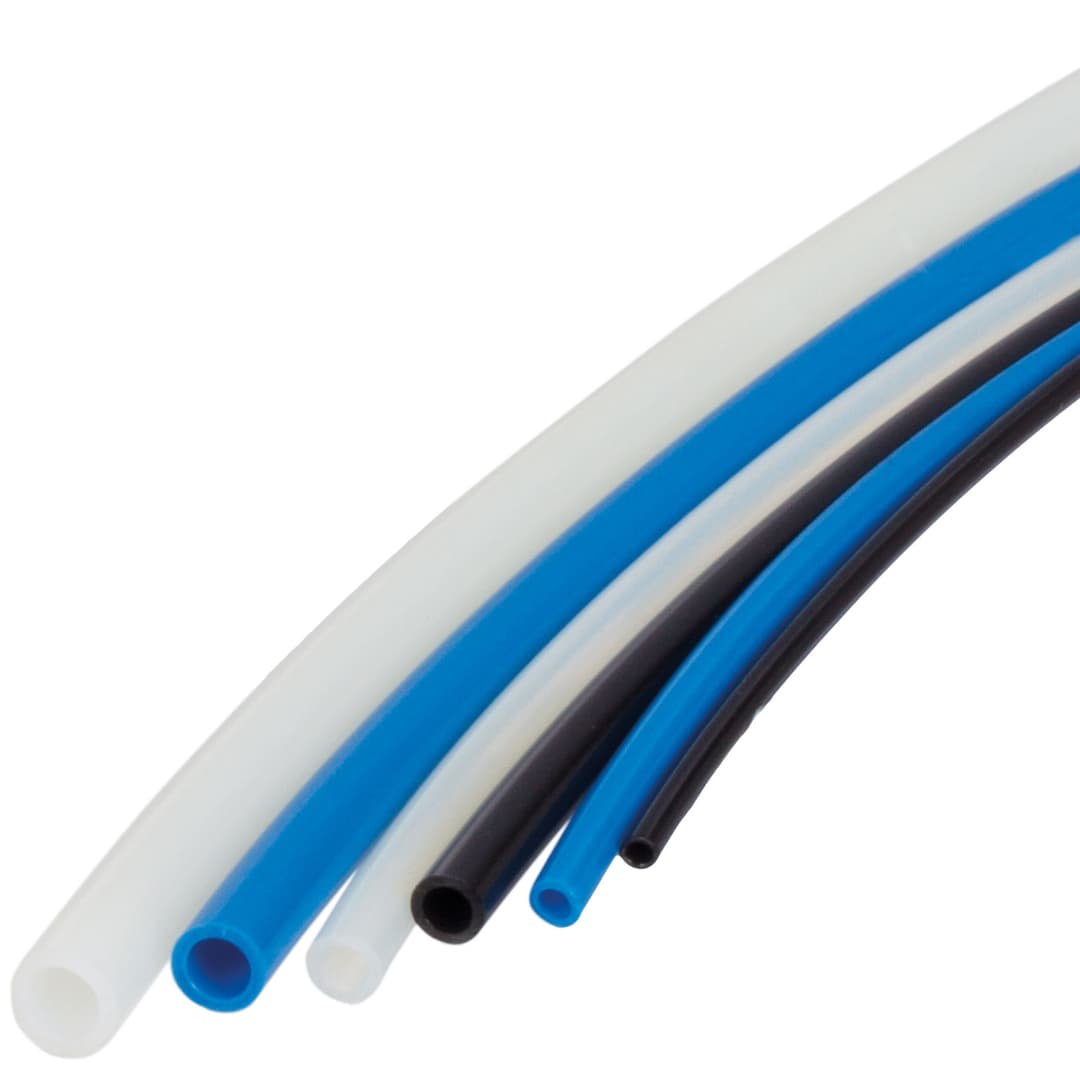

Polyamide hose PA (hard), color blue outer diameter 4mm, inner diameter 2,5mm
Manufacturer part no. 86980402
$1.05≈ 0.91 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €0.91 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.18 |
| Total delivered | €19.09 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Inner diameter | 2.5 mm |
| Max operation pressure | 28 bar |
| Min bend radius | 25 mm |
| Outer diameter | 4 mm |
| Color | Blue mm |
| Material | Polyamide (PA) |
| Surface | Blank |
| Weight | 10 g/m |
Description
Material: Polyamide. Dimensions and tolerances to DIN 73378. Max. length 100m. Application: Pneumatic-hose for Pneufit-Push-In or Pneufit C connectors. PA-hoses allow a higher pressure than PU-hoses, but they need a bigger radius. Max. Operating Pressure: The pressures shown in the table are valid for -40°C up to +20°C. At higher temperature note follwing factors: Temperature 30 °C: Factor 0,83. Temperature 40 °C: Factor 0,72. Temperature 50 °C: Factor 0,64. Temperature 60 °C: Factor 0,57. Temperature 70 °C: Factor 0,47 (max. operating temperatur). 1 Unit = 1 Meter = 39.37 Inches
