MÄDLERMÄDLER· Pneumatic Elements

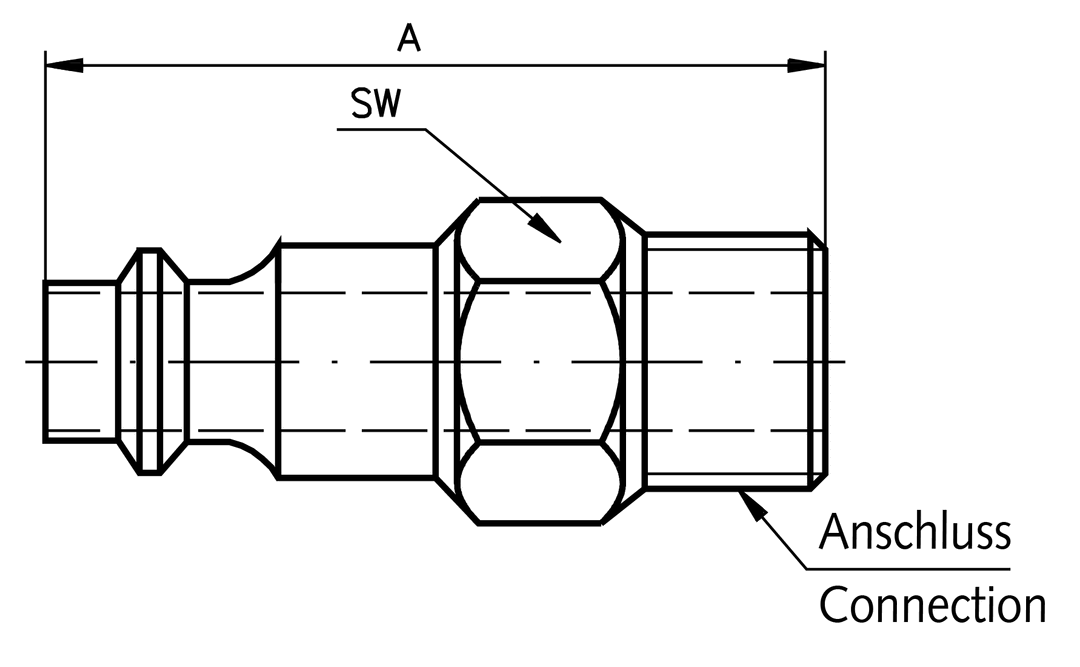

Hosetail with external thread for quick coupling G 3/8
Manufacturer part no. 87033238
$6.83≈ 5.93 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €5.93 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.19 |
| Total delivered | €25.12 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 31 g |
Other characteristics
| Total length | 41 mm |
| Wrench size | 17 mm |
| Inner thread size | G 3/8″ |
| Material | Carbonated steel |
| Surface | Corrosion-proof |
Description
Material:: Carbonated steel, with corrosion- proof treatment. Internal diameter: 7.2 mm/7.4 mm. Operating pressure: 2 – 12 bar. Max. operating pressure: 16 bar. Precision: constant dimensions. Hardness: wear resitant.
