MÄDLERMÄDLER· Pneumatic Elements

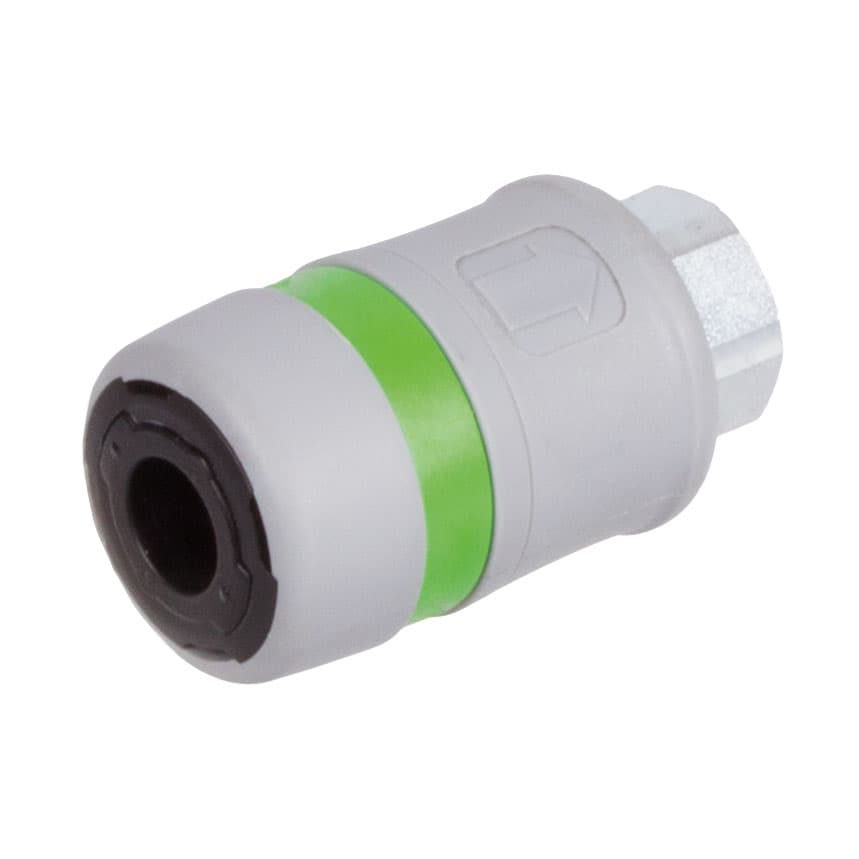

Standard snap-on connectors G 1/2
Manufacturer part no. 87041112
$35.81≈ 31.10 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €31.10 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.22 |
| Total delivered | €55.32 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 87 g |
Other characteristics
| Length of handle | 49 mm |
| Outer diameter | 32 mm |
| Total length | 70 mm |
| Connection | G 1/2″ |
| Material | Composite |
| Surface | Blank |
Description
Material: Composite material. Air-flow-Ø: 7.2/7.4 mm. Air flow: 1470 l/min ΔP: 0.6 bar. 1920 l/min ΔP: 1 bar. Adaptor profile: NW 7.2 and NW 7.4. Operating pressure: 2 to 12 bar. Max. operating pressure: 16 bar. Temperature range: -15ºC to +70ºC.
