Integrated freewheel BSEU40-40 European type inner diameter 40mm outer diameter 118mm width 55mm with keyway at inner ring
Manufacturer part no. BSEU40-40
$614.98≈ 534.07 €
Price summary
Listed by MÄDLER at €534.07. Delivered to France, including shipping, VAT and any customs duty, it comes to about €658.88. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €534.07 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €109.81 |
| Total delivered | €658.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 14 683,7 kg·cm |
| Weight | 3.32 kg |

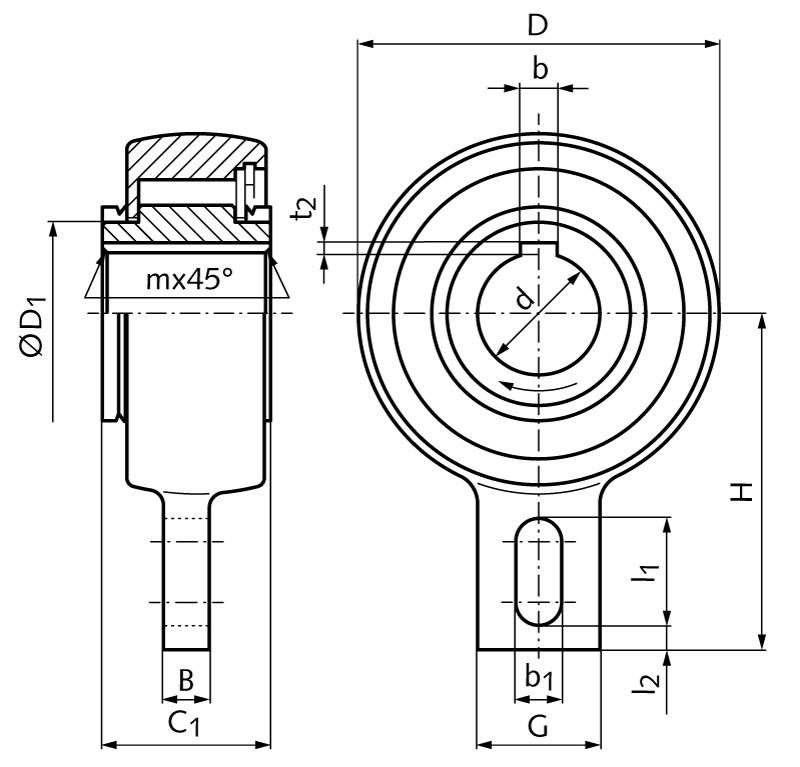

Other characteristics
| B | 15 mm |
| B1 | 15 mm |
| C1 | 55 mm |
| D | 118 mm |
| D h7 | 40 mm |
| D1 | 60 mm |
| G | 40 mm |
| H | 110 mm |
| L1 | 35 mm |
| L2 | 8 mm |
| M | 1.5 mm |
| Max overrunning inner race | 450 |
| T2 | 3.3 mm |
Description
he premium quality integrated sprag freewheels of the BSEU series were developed as classic backstops for a wide variety of conveyor belt sizes, bucket elevators and inclined conveyors. These European-style backstops are used in low-speed applications. Keyway: according to DIN 6885-1. Mounting: Recommended shaft tolerance h7 or h8. The direction of rotation of the inner ring must correspond to the direction of rotation of the application. The direction of rotation is indicated by a marking arrow on the inner ring. Lubrication: Lubricated for life with low temperature grease. Temperature range: -40°C bis + 50°C. The temperature range applies to the specified max. overrunning speed. Outside this temperature range, the specified speed can no longer be guaranteed. Very low speeds allow a higher temperature. In this case, please consult us. Mounting: During assembly, the freewheel must always be mounted on the shaft with a keyway provided by the customer. Then fasten the freewheel with an end washer. Never use a tapered / wedge-shaped keyway. When mounting the freewheel onto the shaft, only apply pressure to the surface of the inner ring with a soft rubber mallet and do not subject the freewheel to unnecessary shocks. Use the frame or a pin to eliminate outer race rotation. Note: The load on the torque arm must be perpendicular to the direction of the shaft. Otherwise the internal parts of the freewheel may jam and cause damage. A clearance of 0.5 mm must be set between the torque arm and the customer‘s frame (stop for the torque arm) or the slotted hole in the torque arm and the pin. A rigidly mounted torque arm could damage the freewheel. Other versions on request.
