DigiKeyToshiba Semiconductor and Storage· Integrated circuits
Toshiba Semiconductor and Storage TC78B004AFTG,EL — BRUSHLESS MOTOR CONTROLLER WITH
Manufacturer part no. TC78B004AFTG,EL
€2.37
In stock — 3998 unitslead time 112 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €2.37 |
| Shipping | €18.00 |
| VAT (20%) | €4.07 |
| Total delivered | €24.44 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €2.37 | |
| ≥ 10 | €1.77 | −25 % |
| ≥ 25 | €1.62 | −32 % |
| ≥ 100 | €1.45 | −39 % |
| ≥ 250 | €1.37 | −42 % |
| ≥ 500 | €1.34 | −43 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 0.1 A |
Other characteristics
| Applications | Usage général |
| Boitier | 40-WFQFN plot exposé |
| Boitier fournisseur | 40-WQFN (6x6) |
| Configuration de sortie | Circuit de pré-attaque - Demi-pont (3) |
| Fonction | Contrôleur - vitesse |
| Interface | PWM |
| Technologies | NMOS |
| Temperature de fonctionnement | -30°C ~ 85°C |
| Tension alimentation | 10V ~ 28V |
| Type de montage | Montage en surface |
| Type de moteur ca cc | Sans balais CC (BLDC) |
| Type de moteur pas a pas | Multiphase |
Compliance
| Moisture sensitivity (MSL) | 1 (illimité) |
Description
NMOS Pilote de moteur Multiphase PWM 40-WQFN (6x6)
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
DigiKeyIn stock
Toshiba Semiconductor and Storage TB67H453FTG(O,EL) — 50V 3.5A BRUSHED MOTOR DRIVER IC
€0.94
View at seller ↗
DigiKeyIn stock
Toshiba Semiconductor and Storage TB67H453FNG(O,EL) — 50V 3.5A BRUSHED MOTOR DRIVER IC
€0.97
View at seller ↗
Similar products
DigiKeyIn stock
Toshiba Semiconductor and Storage TC78B004FTG,EL — SENSORED BRUSHLESS MOTOR CONTROL
€2.23
View at seller ↗
DigiKeyIn stock

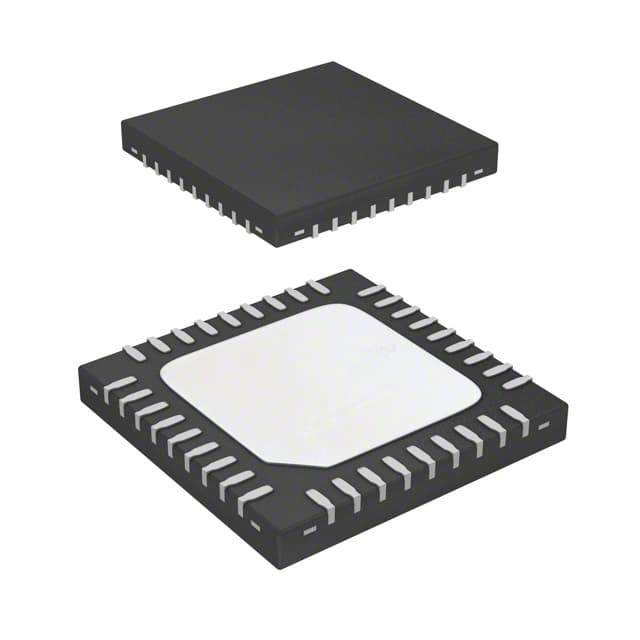

Toshiba Semiconductor and Storage TC78B011FTG,EL — 3-PHASE BRUSHLESS MOTOR CONTROLL
