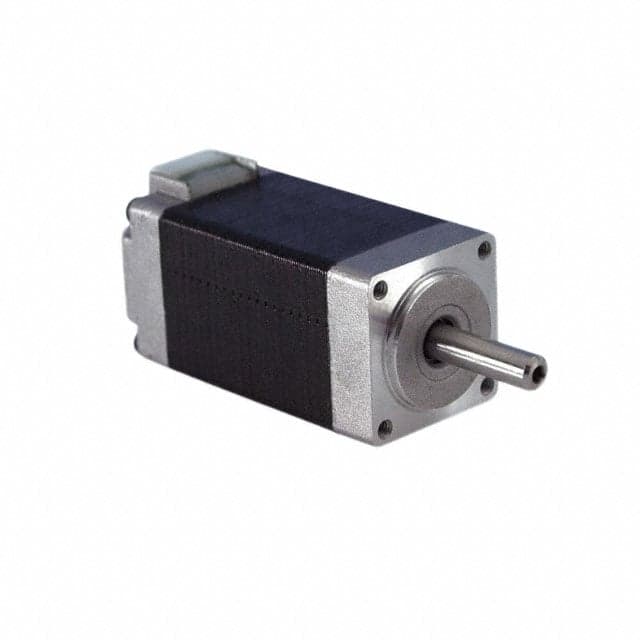

Lin Engineering WO-208-17-01-RO — STEPPER MOTOR
Manufacturer part no. WO-208-17-01-RO
€83.79
In stock — 27 unitslead time 112 d
- Conforme à RoHS
Estimated landed cost
| Item | €83.79 |
| Shipping (free over threshold) | Free |
| VAT (20%) | €16.76 |
| Total delivered | €100.55 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €83.79 | |
| ≥ 5 | €77.00 | −8 % |
| ≥ 10 | €74.25 | −11 % |
| ≥ 32 | €69.85 | −17 % |
| ≥ 64 | €67.35 | −20 % |
| ≥ 128 | €66.29 | −21 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 0.8 A |
Other characteristics
| Angle de pas | 1.8 ° |
| Pas par tour | 200 |
| Resistance de bobine | 5.4 Ohms |
| Taille de chassis nema | 8 |
| Diametre arbre | 0,157po (4,00mm) |
| Espacement des orifices de montage | 0,630 po (16,00mm) |
| Fonctionnalites | Axe rond |
| Longueur arbre et roulement | 0,591po (15,00mm) |
| Style de terminaison | Fils conducteurs |
| Taille dimension | Carré - 0,799po x 0,799po (20,30mm x 20,30mm) |
| Temperature de fonctionnement | -20°C ~ 50°C |
| Tension nominale | 24V CC |
| Type de bobine | Bipolaire |
Compliance
| Moisture sensitivity (MSL) | 1 (illimité) |
Description
Bipolaire Moteurs pas-à-pas Taille châssis 8 200.0 degrés 800 mA 24V CC
