DigiKeySame Sky (Formerly CUI Devices)· Motors, actuators, solenoids and drivers

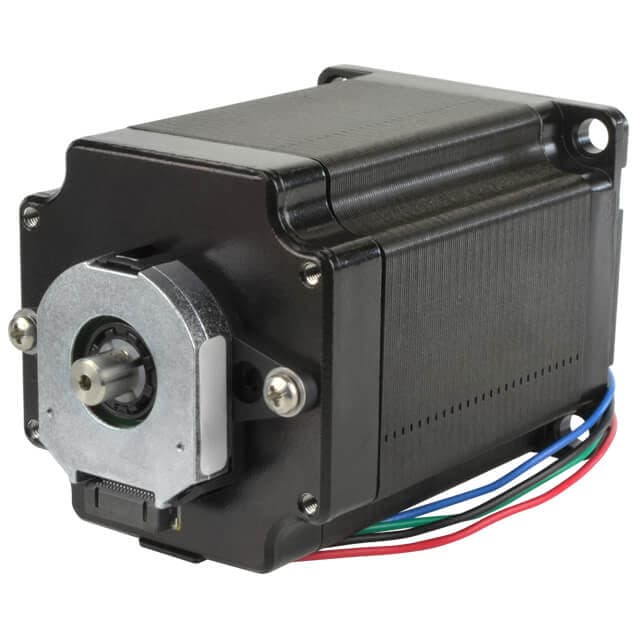

Same Sky (Formerly CUI Devices) NEMA23-22-02SD-AMT112S — STEPPER MOTOR W/ INCREMENTAL ENC
Manufacturer part no. NEMA23-22-02SD-AMT112S
€142.12
In stock — 31 unitslead time 154 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €142.12 |
| Shipping (free over threshold) | Free |
| VAT (20%) | €28.42 |
| Total delivered | €170.54 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €142.12 | |
| ≥ 5 | €130.61 | −8 % |
| ≥ 10 | €125.95 | −11 % |
| ≥ 30 | €118.89 | −16 % |
| ≥ 50 | €111.15 | −22 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 2.1 A |
Other characteristics
| Angle de pas | 1.8 ° |
| Pas par tour | 200 |
| Resistance de bobine | 1.8 Ohms |
| Taille de chassis nema | 23 |
| Couple maintien oz in mnm | 170 / 1200,46 |
| Diametre arbre | 0,250po (6,35mm) |
| Espacement des orifices de montage | 1,819po (46,20mm) |
| Fonctionnalites | Codeur intégré, arbre plat |
| Longueur arbre et roulement | 0,811po (20,60mm) |
| Precision | ±0,2% |
| Style de terminaison | Connecteur |
| Taille dimension | Carré - 2,252po x 2,252po (57,20mm x 57,20mm) |
| Temperature de fonctionnement | -20°C ~ 50°C |
| Tension nominale | 24 ~ 80V CC |
| Type de bobine | Bipolaire |
Compliance
| Moisture sensitivity (MSL) | Sans objet |
Description
Bipolaire Moteurs pas-à-pas Taille châssis 23 200.0 degrés 2.1 A 24 ~ 80V CC
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
Similar products
DigiKeyIn stock

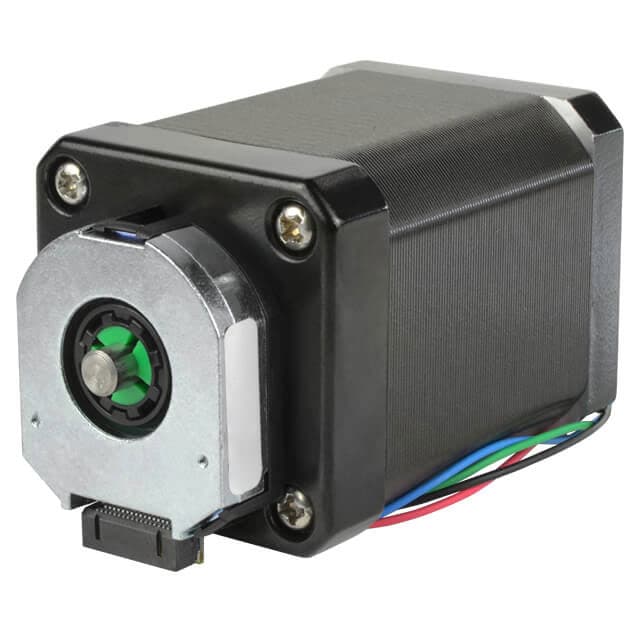

Same Sky (Formerly CUI Devices) NEMA17-13-04PD-AMT112S — STEPPER MOTOR W/ INCREMENTAL ENC
