Analog Devices Inc./Maxim Integrated TMC6300-LA-T — BLDC MOTOR DRIVER 2-11V QFN20
Manufacturer part no. TMC6300-LA-T
€2.50
In stock — 4214 unitslead time 161 d
- Unknown
Estimated landed cost
| Item | €2.50 |
| Shipping | €18.00 |
| VAT (20%) | €4.10 |
| Total delivered | €24.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €2.50 | |
| ≥ 10 | €1.86 | −25 % |
| ≥ 25 | €1.70 | −32 % |
| ≥ 100 | €1.53 | −39 % |
| ≥ 250 | €1.45 | −42 % |
| ≥ 500 | €1.42 | −43 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 2 A |
| Voltage | 11 V |
Other characteristics
| Applications | Usage général |
| Boitier | 20-VFQFN plot exposé |
| Boitier fournisseur | 20-QFN (3x3) |
| Configuration de sortie | Demi-pont (3) |
| Fonction | Variateur - entièrement intégré, commande et étage de puissance |
| Technologies | MOSFET de puissance |
| Temperature de fonctionnement | -40°C ~ 125°C (TJ) |
| Tension alimentation | 2V ~ 5,25V |
| Tension charge | 2V ~ 11V |
| Type de montage | Montage en surface |
| Type de moteur ca cc | Sans balais CC (BLDC) |
| Type de moteur pas a pas | Multiphase |
Compliance
| Moisture sensitivity (MSL) | 3 (168 heures) |
Description
MOSFET de puissance Pilote de moteur Multiphase 20-QFN (3x3)
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
FarnellIn stock
MICROCHIP - MCP8022-3315H/NHXVAO - Driver de moteur, Brushless DC, 3 sorties, 4V à 40V, WFVQFN-EP-40, -40°C à 150°C
€1.11
View at seller ↗
Similar products
DigiKeyBackorder
Analog Devices Inc./Maxim Integrated TMC2300-LA-T — LOW VOLTAGE MOTOR DRIVER 2-11V Q
€3.49
View at seller ↗
FarnellIn stock
TRINAMIC / ANALOG DEVICES - TMC6140-LA-T - Driver moteur, BLDC, moteur à courant continu, PMSM, pas à pas, 5V à 30V, 1A, -50°C à 150°C, QFN-36
€4.52
View at seller ↗FarnellIn stock
TRINAMIC / ANALOG DEVICES - TMC6140-LA-T - Driver moteur, BLDC, moteur à courant continu, PMSM, pas à pas, 5V à 30V, 1A, -50°C à 150°C, QFN-36
€4.52
View at seller ↗
DigiKeyIn stock

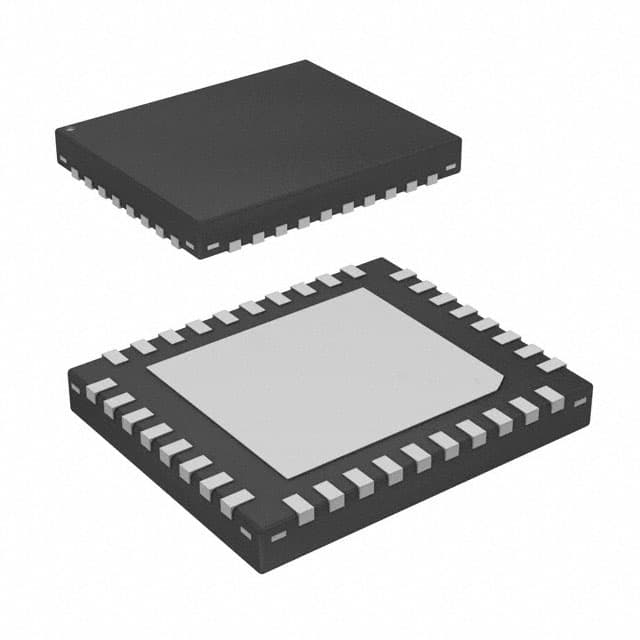

Analog Devices Inc./Maxim Integrated TMC2130-LA — STEPPER MOTOR DRIVER IC, SPI, ST
