DigiKeyTexas Instruments· Integrated circuits
Texas Instruments DRV8846RGER — IC MOTOR DRIVER PAR 24VQFN
Manufacturer part no. DRV8846RGER
€2.90
In stock — 4514 unitslead time 63 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €2.90 |
| Shipping | €18.00 |
| VAT (20%) | €4.18 |
| Total delivered | €25.08 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €2.90 | |
| ≥ 10 | €2.18 | −25 % |
| ≥ 25 | €2.00 | −31 % |
| ≥ 100 | €1.80 | −38 % |
| ≥ 250 | €1.70 | −41 % |
| ≥ 500 | €1.68 | −42 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 1.4 A |
Other characteristics
| Applications | Moteurs pas-à-pas |
| Boitier | 24-VFQFN plot exposé |
| Boitier fournisseur | 24-VQFN (4x4) |
| Configuration de sortie | Demi-pont (4) |
| Fonction | Variateur - entièrement intégré, commande et étage de puissance |
| Interface | Pas/direction |
| Resolution en pas | 1 ~ 1/32 |
| Technologies | MOSFET de puissance |
| Temperature de fonctionnement | -40°C ~ 150°C (TJ) |
| Tension alimentation | 4V ~ 18V |
| Tension charge | 4V ~ 18V |
| Type de montage | Montage en surface |
| Type de moteur pas a pas | Bipolaire |
Compliance
| Moisture sensitivity (MSL) | 3 (168 heures) |
Description
MOSFET de puissance Pilote de moteur Bipolaire Pas/direction 24-VQFN (4x4)

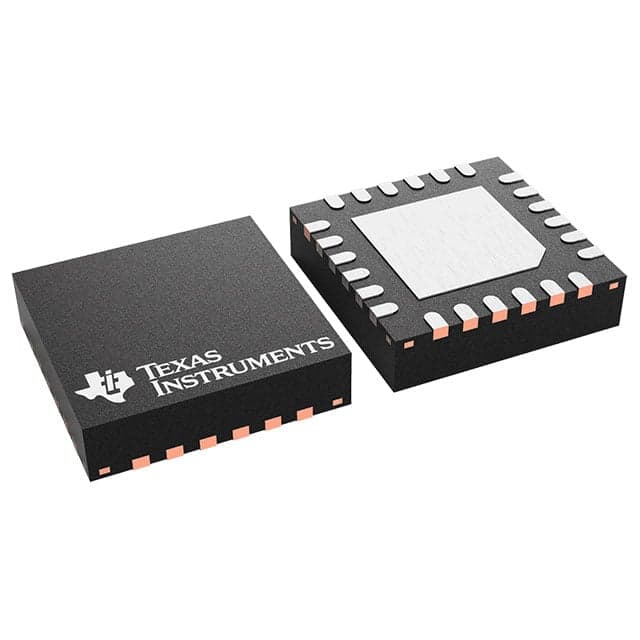

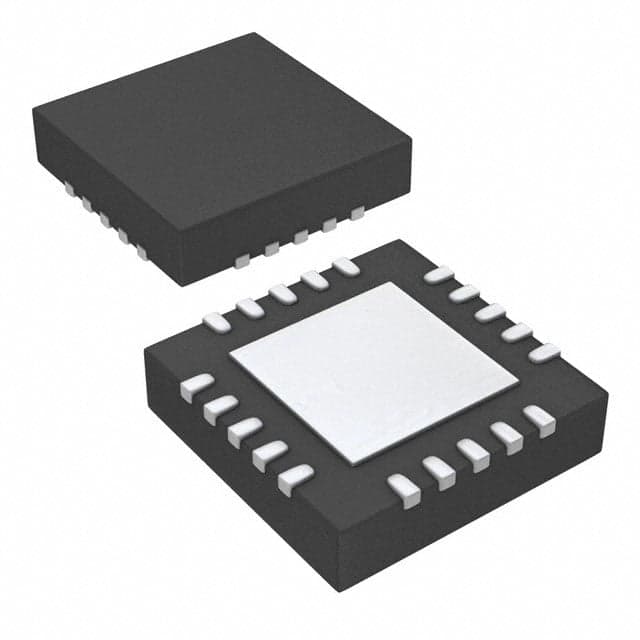

Cheaper alternatives
Semantically close products available for less — check the specs match your need.
