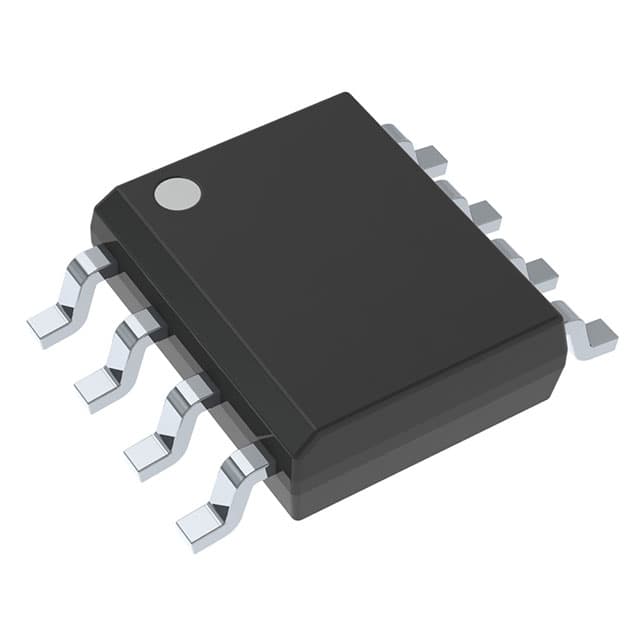

Texas Instruments TMCS1101A2BQDR — CURRENT SENSOR HE 22.5A 8-SOIC
Manufacturer part no. TMCS1101A2BQDR
€2.92
In stock — 2339 unitslead time 112 d
- Sans objet
Estimated landed cost
| Item | €2.92 |
| Shipping | €18.00 |
| VAT (20%) | €4.18 |
| Total delivered | €25.10 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €2.92 | |
| ≥ 10 | €2.19 | −25 % |
| ≥ 25 | €2.01 | −31 % |
| ≥ 100 | €1.81 | −38 % |
| ≥ 250 | €1.72 | −41 % |
| ≥ 500 | €1.69 | −42 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 22.5 A |
| Current max. | 0.006 A |
| Frequency | 80 000 Hz |
Other characteristics
| Boitier fournisseur | 8 -SOIC |
| Courant detection | 22.5 A |
| Nombre de canaux | 1 |
| Sensibilite | 100 mV/A |
| Temps de reponse | 6.5 µs |
| Boitier | 8-SOIC (szerokość 0,154po, 3,90mm) |
| Linearite | ±0,05% |
| Polarisation | Bidirectionnelle |
| Pour la mesure | CA/CC |
| Sortie | Ratiométrique, Tension |
| Temperature de fonctionnement | -40°C ~ 125°C |
| Tension alimentation | 3V ~ 5,5V |
| Type de capteur | Effet Hall |
| Type de montage | Montage en surface |
Compliance
| Moisture sensitivity (MSL) | 2 (1 an) |
Description
Capteurs de courant 22,5A 1 canal Effet Hall Bidirectionnelle 8-SOIC (szerokość 0,154po, 3,90mm)
