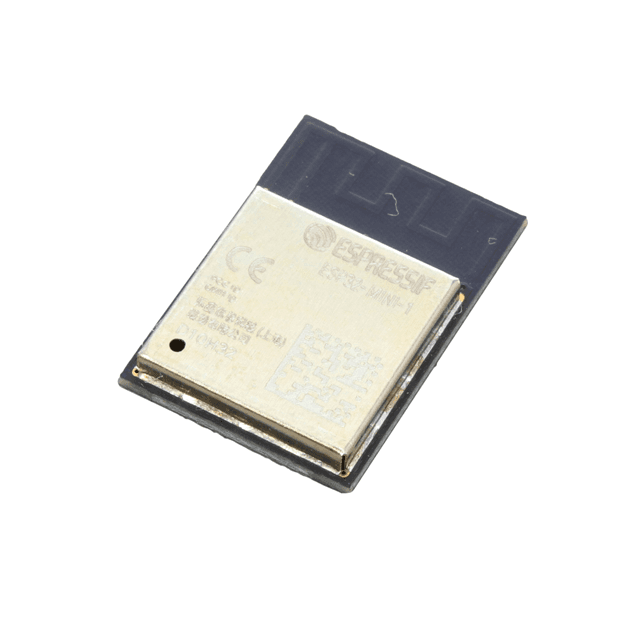

Espressif Systems ESP32-MINI-1U-N4 — RF TXRX MOD BT WIFIU.FL SMD

Name: Espressif Systems ESP32-MINI-1U-N4 — RF TXRX MOD BT WIFIU.FL SMD
Brand: Espressif Systems
Price: 3.66 EUR
Availability: InStock

Manufacturer part no. ESP32-MINI-1U-N4

€3.66

In stock — 7597 unitslead time 84 d

Conforme à RoHS

View at seller ↗

Estimated landed cost

Item	€3.66
Shipping	€18.00
VAT (20%)	€4.33
Total delivered	€25.99

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Volume pricing

Qty	Unit price	Saving
≥ 1	€3.66
≥ 10	€3.17	−13 %
≥ 25	€3.00	−18 %
≥ 100	€2.76	−25 %
≥ 250	€2.62	−29 %

Datasheets & documents

📄 Datasheet

Specifications (automatically extracted)

Electrical

Frequency

2 400 000 000 Hz

Other characteristics

Debit de donnees	150 Mbps
Puissance sortie	19.5 dBm
Sensibilite	-97 dBm
Boitier	Module 55-SMD
Circuit integre composant utilise	ESP32-U4WDH
Courant reception	112mA ~ 118mA
Courant transmission	260mA ~ 379mA
Interfaces serie	ADC, GPIO, I2C, I2S, SDIO, SPI, PWM, UART
Modulation	8DPSK, DQPSK
Norme gamme rf	Bluetooth, WiFi
Programmable digikey	Non vérifié
Protocole	802.11b/g/n, Bluetooth v4.2 +EDR, classe 1, 2 et 3
Taille memoire	4Mo Flash, 448Ko ROM, 536Ko SRAM
Temperature de fonctionnement	-40°C ~ 85°C (TA)
Tension alimentation	3V ~ 3,6V
Type d antenne	Antenne non incluse, U.FL
Type de montage	Montage en surface

Compliance

Moisture sensitivity (MSL)

3 (168 heures)

Description

Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 +EDR, classe 1, 2 et 3 Modules d'émetteurs-récepteurs RF 2,4GHz Antenne non incluse, U.FL Montage en surface
