DigiKeyMurata Power Solutions Inc.· Power supplies — board mount

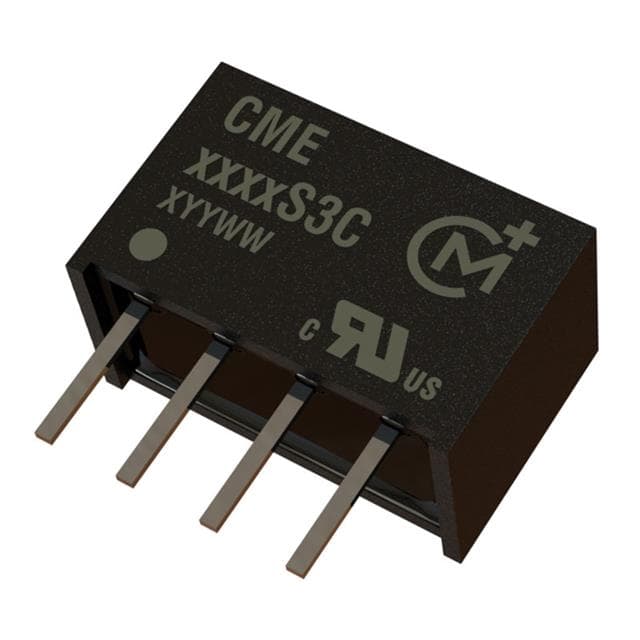

Murata Power Solutions Inc. CME0303S3C — DC DC CONVERTER 3.3V 750MW
Manufacturer part no. CME0303S3C
€3.07
In stock — 8123 unitslead time 133 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €3.07 |
| Shipping | €18.00 |
| VAT (20%) | €4.21 |
| Total delivered | €25.28 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €3.07 | |
| ≥ 5 | €2.96 | −4 % |
| ≥ 10 | €2.91 | −5 % |
| ≥ 40 | €2.82 | −8 % |
| ≥ 80 | €2.77 | −10 % |
| ≥ 120 | €2.74 | −11 % |
| ≥ 280 | €2.69 | −12 % |
| ≥ 520 | €2.65 | −14 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current max. | 0.227 A |
| Power | 0.75 W |
| Voltage | 3.3 V |
Other characteristics
| Nombre de sorties | 1 |
| Rendement | 73 % |
| Tension entree max. | 3.63 V |
| Tension entree min. | 2.97 V |
| Tension isolement | 3 kV |
| Tension sortie 1 | 3.3 V |
| Applications | ITE (commercial) |
| Boitier | Module 4-SIP |
| Taille dimension | 0,45po L x 0,24po l x 0,29po H (11,5mm x 6,0mm x 7,5mm) |
| Temperature de fonctionnement | -40°C ~ 85°C |
| Type | Module isolé |
| Type de montage | Trou traversant |
Compliance
| Moisture sensitivity (MSL) | Sans objet |
Description
Module isolé Convertisseurs CC/CC 1 Sortie 3,3V 227mA 2,97V - 3,63V Entrée
