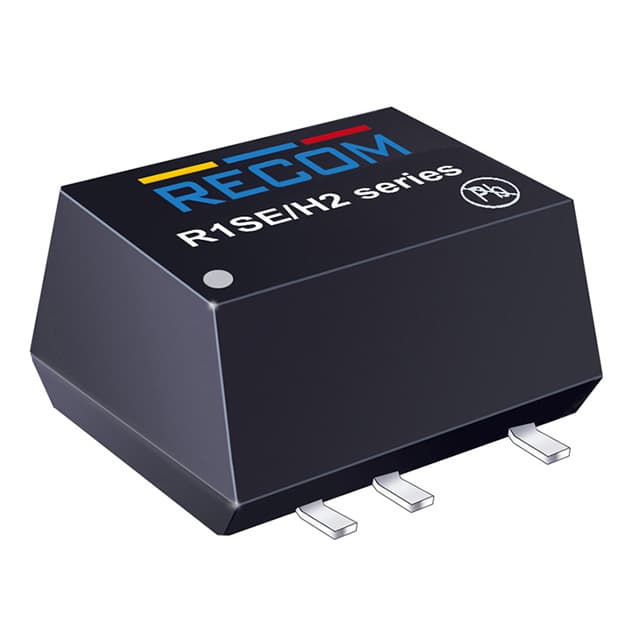

Recom Power R1SE-0515/H2-R — DC DC CONVERTER 15V 1W
Manufacturer part no. R1SE-0515/H2-R
€4.06
In stock — 8865 unitslead time 140 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €4.06 |
| Shipping | €18.00 |
| VAT (20%) | €4.41 |
| Total delivered | €26.47 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €4.06 | |
| ≥ 5 | €3.90 | −4 % |
| ≥ 10 | €3.84 | −5 % |
| ≥ 25 | €3.76 | −7 % |
| ≥ 50 | €3.70 | −9 % |
| ≥ 100 | €3.64 | −10 % |
| ≥ 250 | €3.56 | −12 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current max. | 0.066 A |
| Power | 1 W |
| Voltage | 15 V |
Other characteristics
| Nombre de sorties | 1 |
| Rendement | 76 % |
| Tension entree max. | 5.5 V |
| Tension entree min. | 4.5 V |
| Tension isolement | 2 kV |
| Tension sortie 1 | 15 V |
| Applications | ITE (commercial) |
| Boitier | Module 8-SMD, 5 sorties |
| Taille dimension | 0,50po L x 0,42po l x 0,26po H (12,8mm x 10,7mm x 6,7mm) |
| Temperature de fonctionnement | -40°C ~ 100°C |
| Type | Module isolé |
| Type de montage | Montage en surface |
Compliance
| Moisture sensitivity (MSL) | 1 (illimité) |
Description
Module isolé Convertisseurs CC/CC 1 Sortie 15V 66mA 4,5V - 5,5V Entrée
