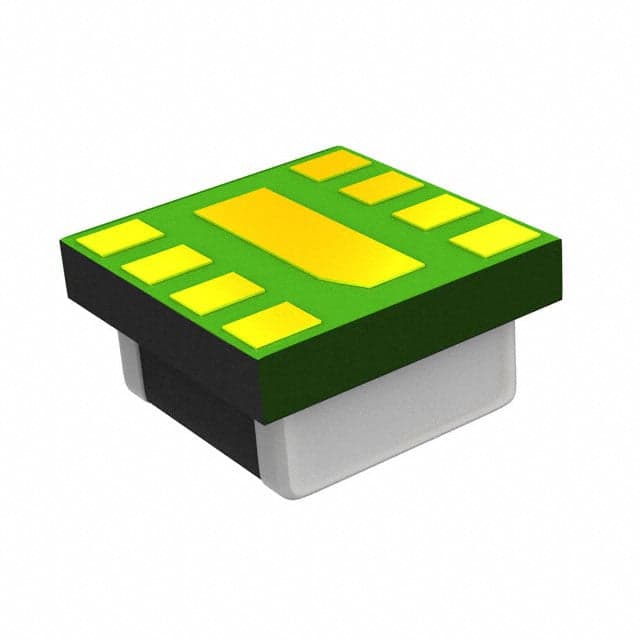

Manufacturer part no. TPS82084SILR
Listed by DigiKey at €2.45. Delivered to France, including shipping, VAT and any customs duty, it comes to about €32.94. Prices last checked on 2026-10-07.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €2.45 |
|---|---|
| Shipping | €25.00 |
| VAT (20%) | €5.49 |
| Total delivered | €32.94 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €2.45 | |
| ≥ 5 | €2.36 | −4 % |
| ≥ 10 | €2.32 | −5 % |
| ≥ 25 | €2.27 | −7 % |
| ≥ 50 | €2.24 | −9 % |
| ≥ 100 | €2.20 | −10 % |
| ≥ 250 | €2.15 | −12 % |
| ≥ 500 | €2.12 | −14 % |
| Current max. | 2 A |
| Voltage | 6 V |
| Nombre de sorties | 1 |
| Tension entree max. | 6 V |
| Tension entree min. | 2.5 V |
| Applications | ITE (commercial) |
| Boitier | 8-LDFN plot exposé |
| Boitier fournisseur | 8-uSIP (3x2,8) |
| Fonctionnalites | Sortie ajustable |
| Taille dimension | 0,12po L x 0,11po l x 0,05po H (3,0mm x 2,8mm x 1,3mm) |
| Temperature de fonctionnement | -40°C ~ 125°C |
| Tension sortie 1 | 0,8 ~ 6V |
| Type | Module PoL non isolé |
| Type de montage | Montage en surface |
Module PoL non isolé Convertisseurs CC/CC 1 Sortie 0,8 ~ 6V 2A 2,5V - 6V Entrée
| Moisture sensitivity (MSL) | 2 (1 an) |
