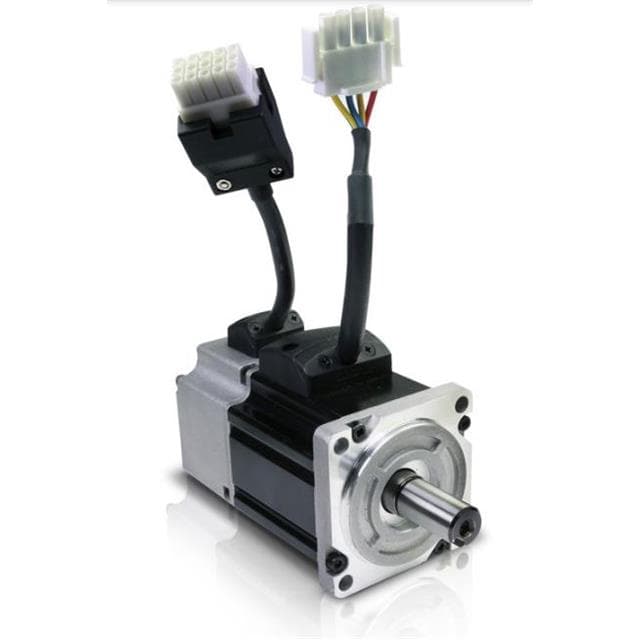

Lin Engineering SBL60D2-03 — 400 WATT BLDC SERVO MOTOR - 60 M
Manufacturer part no. SBL60D2-03
€493.97
In stock — 5 unitslead time 112 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €493.97 |
| Shipping (free over threshold) | Free |
| VAT (20%) | €98.79 |
| Total delivered | €592.76 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €493.97 | |
| ≥ 5 | €465.95 | −6 % |
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Speed | 3 000 rpm |
Other characteristics
| Puissance nominale | 400 W |
| Couple assigne oz in mnm | 179.8 / 1270 |
| Couple momentane max oz in mnm | 481,5 / 3400 |
| Diametre arbre | 0,550 po (13,97mm) |
| Espacement des orifices de montage | 2,750po (69,85mm) |
| Fonction | Standard |
| Longueur arbre et roulement | 1,180po (29,97mm) |
| Style de terminaison | Fil conducteur avec connecteur |
| Taille dimension | Carré - 2,360po x 2,360po (59,94mm x 59,94mm) |
| Tension nominale | 48V CC |
| Type | Moteur CC |
| Type de codeur | Incrémental |
Compliance
| Moisture sensitivity (MSL) | 1 (illimité) |
Description
Brushless DC (BLDC) Moteur CC Standard 3000 tr/min 400W Incrémental 48V CC
