DigiKeyActuonix Motion Devices Inc· Motors, actuators, solenoids and drivers

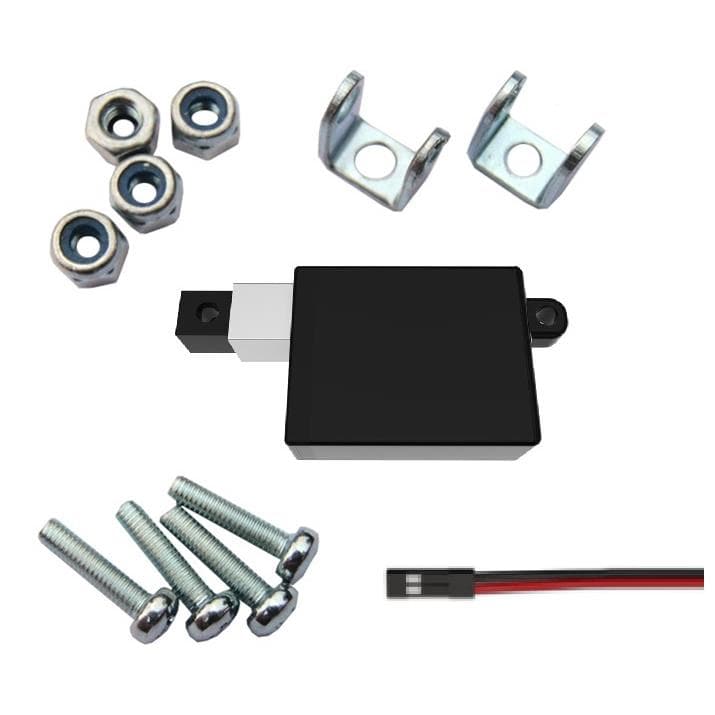

Actuonix Motion Devices Inc P8-10-165-12-S — P8-S Micro Linear Actuator
Manufacturer part no. P8-10-165-12-S
€87.44
In stock — 50 units
- Conforme à RoHS
Estimated landed cost
| Item | €87.44 |
| Shipping (free over threshold) | Free |
| VAT (20%) | €17.49 |
| Total delivered | €104.93 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Environment
| Indice de protection | IP54 - Protection contre la poussière, résistance à l'eau |
Other characteristics
| Rapport cyclique | 20 % |
| Rapport de demultiplication | 165 |
| Construction | Vis-mère |
| Fonctionnalites | Interrupteurs de fin de course |
| Force de charge dynamique | 24,73lbf (110,0N) |
| Force de charge statique | 40,46lbf (180N) |
| Longueur de course | 0,394 po (10,00mm) |
| Precision | ±0,10mm |
| Style de terminaison | Câble avec connecteur |
| Temperature de fonctionnement | -10°C ~ 50°C |
| Tension nominale | 12V CC |
| Type | Actionneur linéaire |
| Type de moteur | À balais |
| Vitesse | 0,36po/s (9,2mm/s) |
Description
Actionneur linéaire À balais 0,394 po (10,00mm) Vis-mère Interrupteurs de fin de course 12V CC
