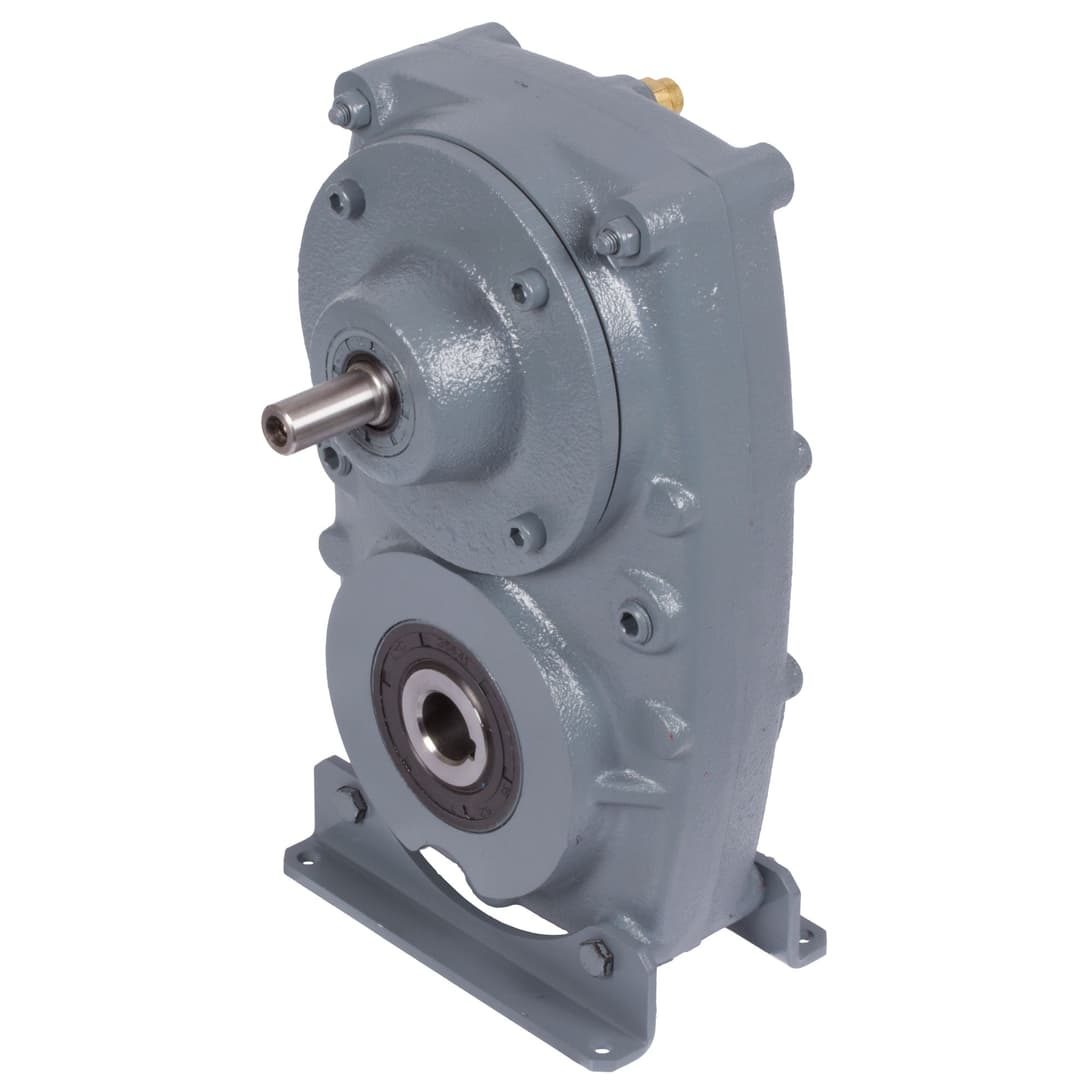

Shaft-mounted flat gearbox BOC1 size 3 version A i=4.13:1 (For operating instructions please visit the download area of our website www.maedler.de) vs Bevel gearbox KU/I model K size 30 version 20 i=3:1 (For operating instructions please visit the download area of our website www.maedler.de)
Shaft-mounted flat gearbox BOC1 size 3 version A i=4.13:1 (For operating instructions please visit the download area of our website www.maedler.de) and Bevel gearbox KU/I model K size 30 version 20 i=3:1 (For operating instructions please visit the download area of our website www.maedler.de) are compared below on the data published by their sellers — price converted to euros, stock, and every specification either seller discloses. On price, Shaft-mounted flat gearbox BOC1 size 3 version A i=4.13:1 (For operating instructions please visit the download area of our website www.maedler.de) is €858.75 cheaper ($2042.65).
| Criterion |  Shaft-mounted flat gearbox BOC1 size 3 version A i=4.13:1 (For operating instructions please visit the download area of our website www.maedler.de) |  Bevel gearbox KU/I model K size 30 version 20 i=3:1 (For operating instructions please visit the download area of our website www.maedler.de) |
|---|---|---|
| Price | $2042.65cheapest | $3033.81 |
| Seller | MÄDLER | MÄDLER |
| Availability | Backorder | Backorder |
| Rating | — | — |
| Weight | 36 kg | 48 kg |
| Input shaft diameter | — | 35 mm |
| Max input power at 1 000 min 1 | — | 20.37 kW |
| Max input power at 1 500 min 1 | — | 28.38 kW |
| Max input power at 250 min 1 | — | 5.76 kW |
| Max input power at 3 000 min 1 | — | 46.29 kW |
| Max input power at 50 min 1 | — | 1.29 kW |
| Max input power at 500 min 1 | — | 11.04 kW |
| Max input power at 750 min 1 | — | 15.98 kW |
| Max torque at 1 000 min 1 | — | 420 Nm |
| Max torque at 167 min 1 | — | 600 Nm |
| Max torque at 17 min 1 | — | 690 Nm |
| Max torque at 250 min 1 | — | 530 Nm |
| Max torque at 333 min 1 | — | 490 Nm |
| Max torque at 500 min 1 | — | 470 Nm |
| Max torque at 83 min 1 | — | 630 Nm |
| N2 at n1 1400min min. | 344.1 | — |
| Output shaft diameter | — | 42 mm |
| P at n1 1400min kw | 19.3 | — |
| Ratio i | 4.13 | — |
| Rim length | — | 200 mm |
| Size | — | 30 |
| T2 at fb 1 nm | 510 | — |
| Version | A | 20 |
| View at seller ↗ | View at seller ↗ |
Specifications are extracted automatically from seller data — an empty cell means the seller does not publish that value, not that the product lacks it.
