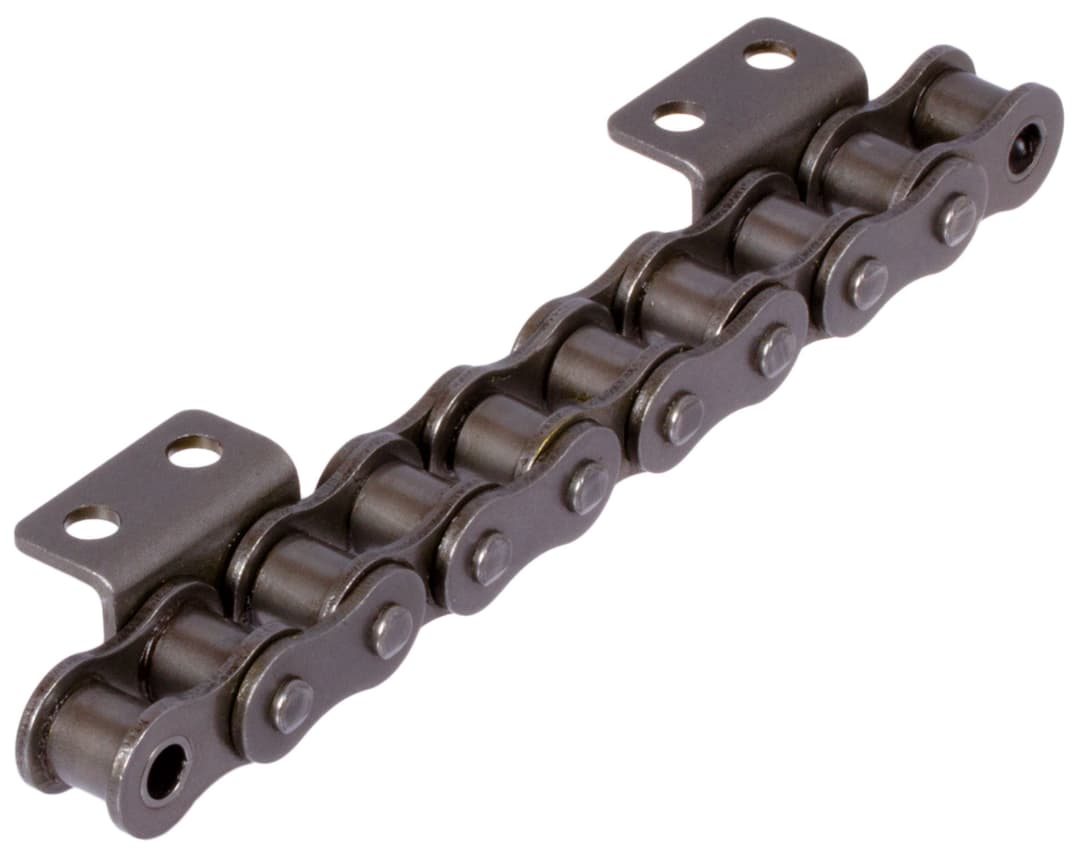

Roller chain with bent attachments 08 B-1-K2 6xp attachments wide version on one side
Manufacturer part no. 10500025
$38.68≈ 33.59 €
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €33.59 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.72 |
| Total delivered | €58.31 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

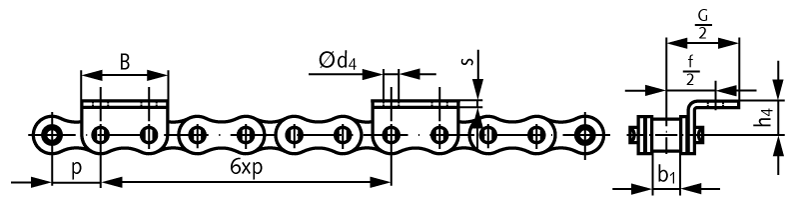

Other characteristics
| Center distance from middle axis to hole | 12.7 mm |
| Distance from middle axis to attachments end | 17.6 mm |
| Flansch width | 23.2 mm |
| Height of pin to support surface | 8.9 mm |
| Hole diameters | 4.5 mm |
| Inner width | 7.75 mm |
| Number of strands | 1 |
| Pitch | 12.7 mm |
| Thickness of attachment | 1.6 mm |
| Din iso no | 08 B-1 |
| Material | Steel |
| Pitch x inner width inch | 1/2 x 5/16″ |
| Surface | Blank |
| Version | One sided |
| Weight |
Description
Material: Special chain steels. According to DIN ISO 606 (ex DIN 8187). Attachment distance 6 x p (attachment at every third outer link). Other attachment distances can be supplied at short notice. Different attachment sizes and special chains on request. Connecting links 11/E have to be ordered separately. * The marked dimensions are not listed in the DIN. 1 Unit = 1 Meter = 39.37 Inches
