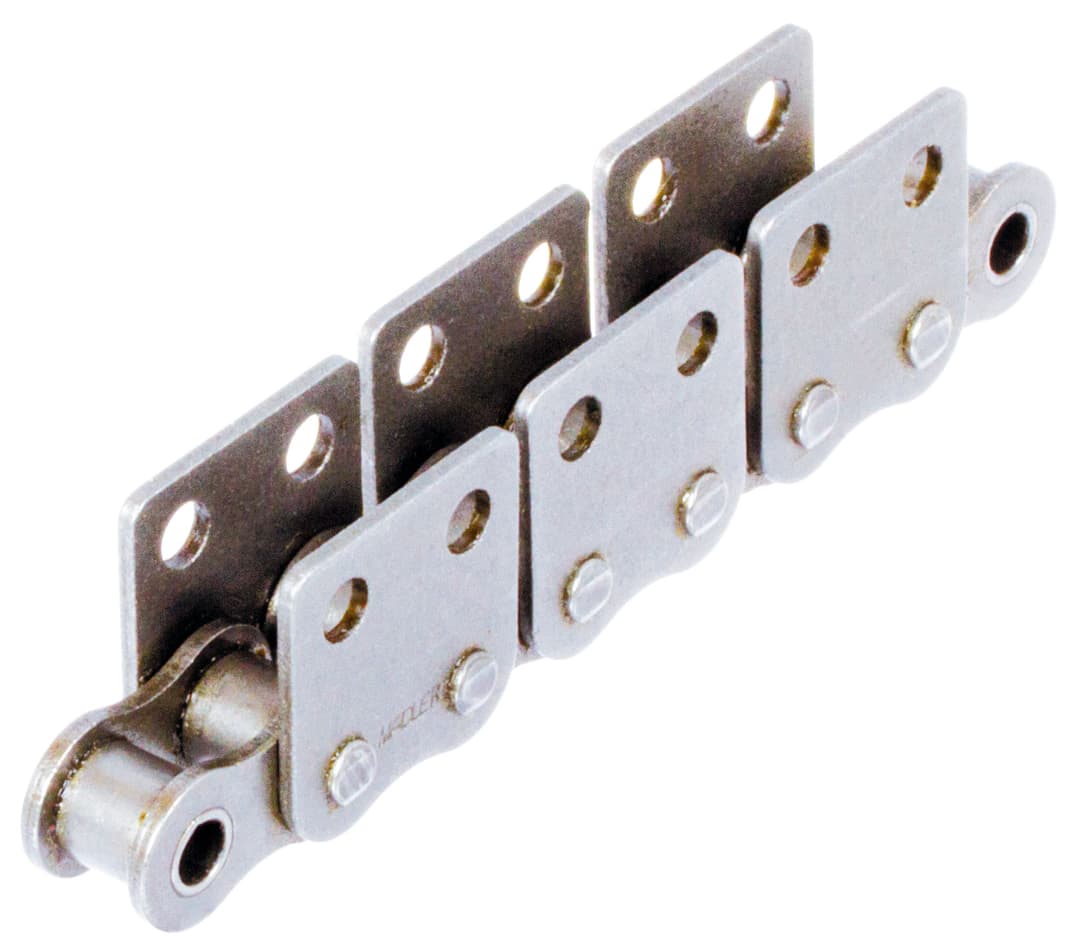

Roller chain with straight attachments 10 B-1-M2 2xp attachments wide version on both sides stainless steel 1.4301
Manufacturer part no. 10699052
$100.83≈ 87.56 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €87.56 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.51 |
| Total delivered | €123.07 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Center distance from pin to hole at the attachme | 16.5 mm |
| Flansch width | 29.5 mm |
| Height of attachments up to pin | 21.9 mm |
| Hole diameters | 5.5 mm |
| Inner width | 9.65 mm |
| Inner width between outer links | 13.41 mm |
| Number of strands | 1 |
| Pitch | 15.875 mm |
| Thickness of attachment | 1.7 mm |
| Din iso no | 10 B-1 |
| Material | Stainless steel (304) |
| Pitch x inner width inch | 5/8 x 3/8″ |
| Surface | Blank |
| Version | Both sided |
| Weight |
Description
Material: Stainless steel 1.4301 (AISI 304). Simplex roller chains with good chemical resistance. Main dimensions according to DIN ISO 606 (ex DIN 8187). Attachment distance 2 x p (attachment at every outer link), two-sided. Other attachment distances can be supplied at short notice. Different attachment sizes and special chains on request. Connecting links M2 have to be ordered separately. 1 Unit = 1 Meter = 39.37 Inches
