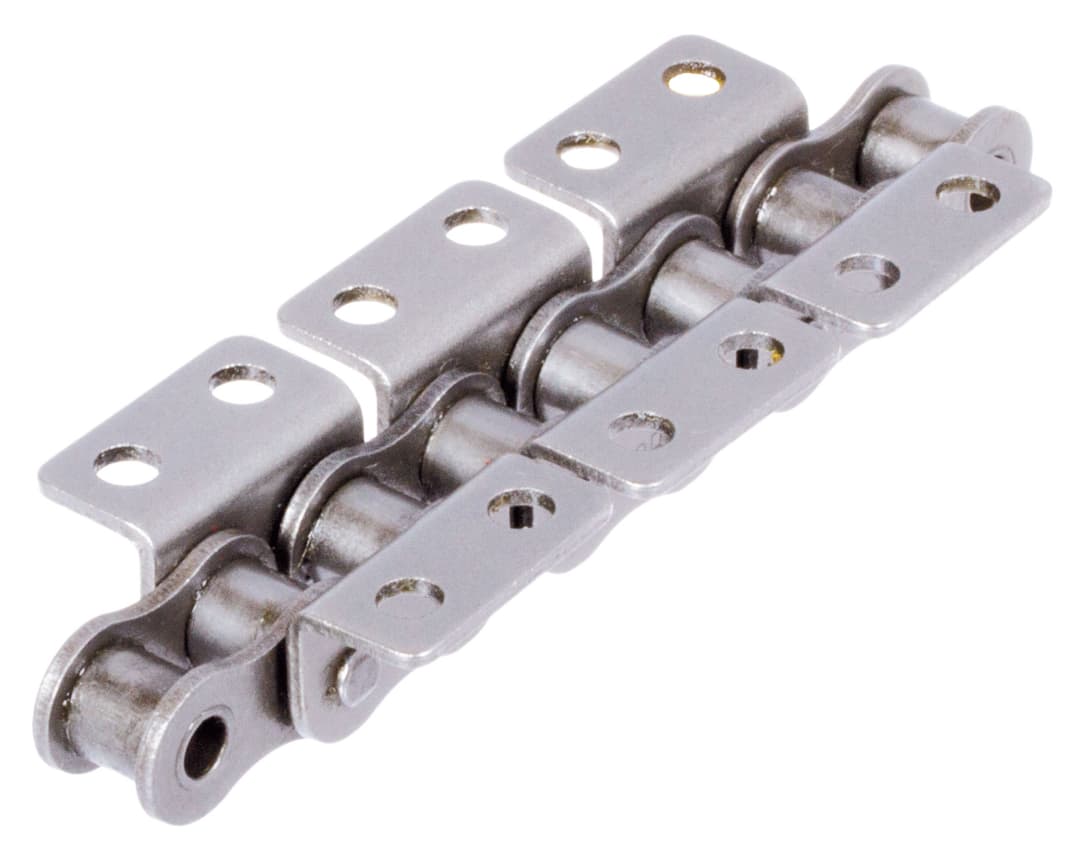

Roller chain with bent attachments 10 B-1-K2 2xp attachments wide version on both sides stainless steel 1.4301
Manufacturer part no. 10699022
$104.55≈ 90.79 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €90.79 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €21.16 |
| Total delivered | €126.95 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Center distance from middle axis to hole | 15.9 mm |
| Distance from middle axis to attachments end | 22.5 mm |
| Flansch width | 29.5 mm |
| Height of pin to support surface | 10.3 mm |
| Hole diameters | 5.5 mm |
| Inner width | 9.65 mm |
| Number of strands | 1 |
| Pitch | 15.875 mm |
| Thickness of attachment | 1.7 mm |
| Din iso no | 10 B-1 |
| Material | Stainless steel (304) |
| Pitch x inner width inch | 5/8 x 3/8″ |
| Surface | Blank |
| Version | Both sided |
| Weight |
Description
Material: Stainless steel 1.4301 (AISI 304). Simplex roller chains with good chemical resistance. Main dimensions according to DIN ISO 606 (ex DIN 8187). Attachment distance 2 x p (attachment at every outer link), two-sided. Other attachment distances can be supplied at short notice. Different attachment sizes and special chains on request. Connecting links K2 have to be ordered separately. 1 Unit = 1 Meter = 39.37 Inches
