Name: Roller chain similar to 12 B-1 pitch 3/4×7/16″ material stainless steel 1.4301
Brand: MÄDLER
Price: 82.83 USD
Availability: InStock

Specifications (automatically extracted)

Other characteristics

Bolt diameter	5.72 mm
Breaking load min.	18 500 N
Inner width	15.62 mm
Number of strands	1
Projection over link	4.6 mm
Rollerdiameter	12.07 mm
Total width over pin	22.7 mm
Din iso no	12 B-1
Material	Stainless steel (304)
Pitch x inner width	19.05 x 11.68 mm
Pitch x inner width inch	3/4 x 7/16″
Surface	Blank
Weight	1.25 kg/m

Description

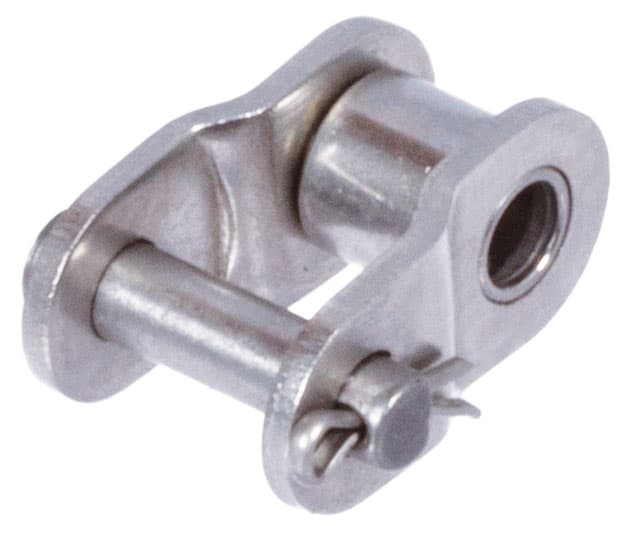

Similar to DIN ISO 606 (ex DIN 8187). Material: Stainless steel 1.4301 (AISI 304). Good chemical resistance. Main dimensions according to DIN. Due to the material properties, the stated transmittable power and breaking load are below the value for the standard chains. The application should use no more than one sixth of the braking load stated. Pre-stretched. Not lubricated. The chains must be lubricated according to the type of application. Waisted link plates (size 06 with straight link plates). Chains with an uneven number of links are supplied with inner links at both ends. Connecting links have to be ordered separately. 1 Unit = 1 Meter = 39.37 Inches
