MÄDLERMÄDLER· Sprockets, Chains, Accessories
Double-strand roller chain 12 B-2 pitch 3/4×7/16″ material stainless steel 1.4301
Manufacturer part no. 12799000
$114.71≈ 99.62 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €99.62 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €22.92 |
| Total delivered | €137.54 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

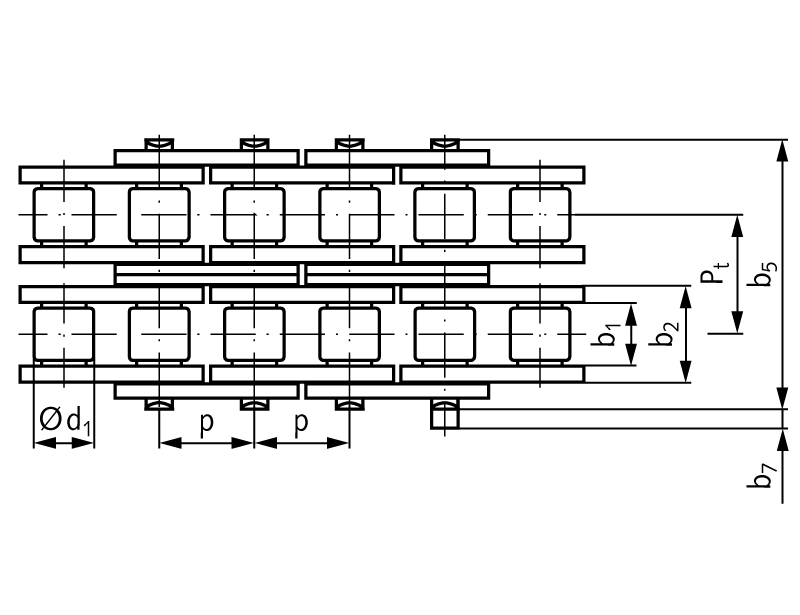

Specifications (automatically extracted)
Mechanical
| Weight | 2.38 g |
Other characteristics
| B5 | 42.2 mm |
| Breaking strength approx | 37 |
| Inner link width b2 | 15.62 mm |
| Pt | 19.46 mm |
| Roller d1 | 12.07 mm |
| B 7 | 4,6 2) |
| Din isonr | 12 B-2 |
| Pitch p x inner width b | 19,05 x 11,68 |
| Pitch p x inner width b1 | 3/4 x 7/16 |
Description

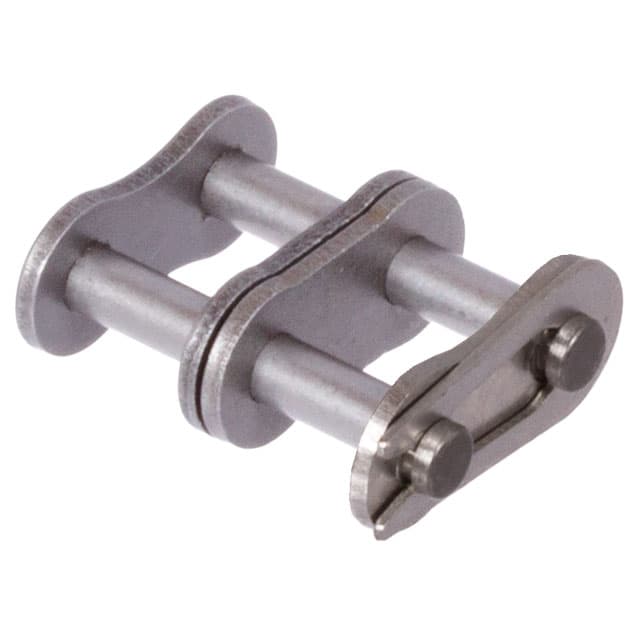

Material: Stainless steel 1.4301 (AISI 304). Duplex roller chains with good chemical resistance. Main dimensions according to DIN ISO 606. Due to the material properties, the stated transmittable power and breaking load are below the value for the standard chains. The application should use no more than one sixth of the breaking load stated. Pre-stretched. Not lubricated. The chains must be lubricated according to the type of application. Waisted link plates (size 06 with straight link plates). Chains are supplied with an uneven number of links, with inner links at both ends. Connecting links have to be ordered separately. 1) With straight link plates. 2) Maximum values at the link. 1 Unit = 1 Meter = 39.37 Inches
