MÄDLERMÄDLER· Sprockets, Chains, Accessories

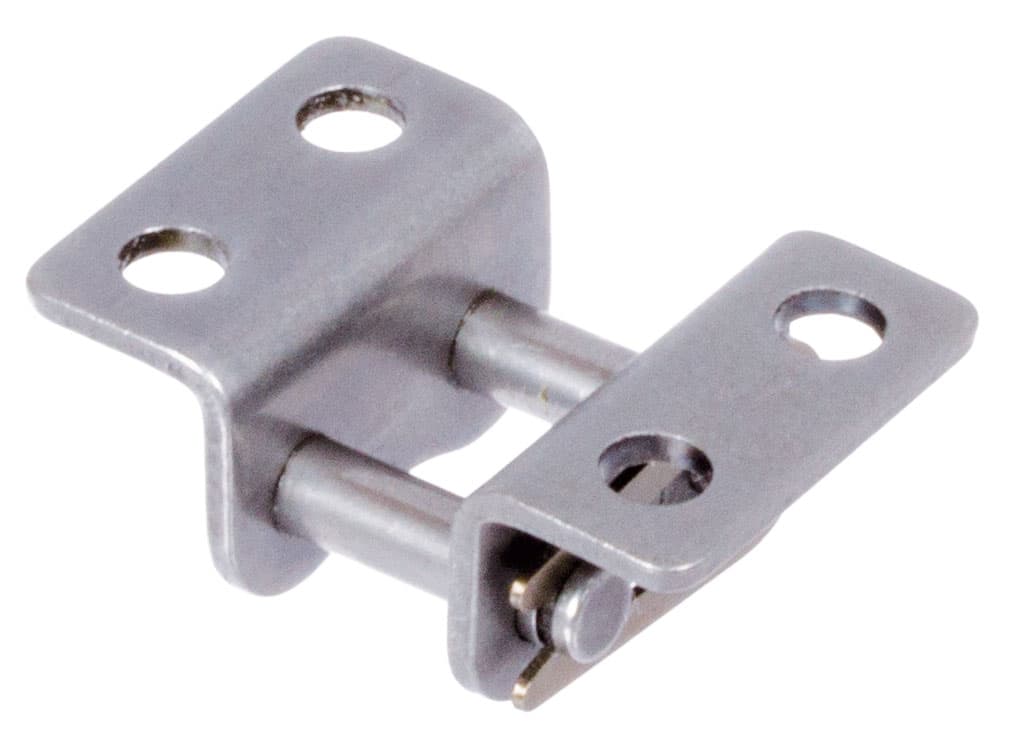

Chain connecting link type 11 / E with bent attachments 12 B-1-K2 attachments wide version on both sides stainless steel 1.4301
Manufacturer part no. 10799322
$11.61≈ 10.08 €
In stock — 8 unitslead time 14 d
Estimated landed cost
| Item | €10.08 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.02 |
| Total delivered | €30.10 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 40 g |
Other characteristics
| Center distance from middle axis to hole | 19.05 mm |
| Distance from middle axis to attachments end | 26.5 mm |
| Flansch width | 33.8 mm |
| Height of pin to support surface | 13.5 mm |
| Hole diameters | 6.6 mm |
| Number of strands | 1 |
| Pitch | 19.05 mm |
| Thickness of attachment | 1.8 mm |
| Din iso no | 12 B-1 |
| Material | Stainless steel (304) |
| Surface | Blank |
| Version | Both sided |
Description
Material: Stainless steel 1.4301. With spring clip. For stainless simplex roller chains. With good chemical resistance. Main dimensions according to DIN ISO 606 (ex DIN 8187).
