MÄDLERMÄDLER· Mechanics & transmission

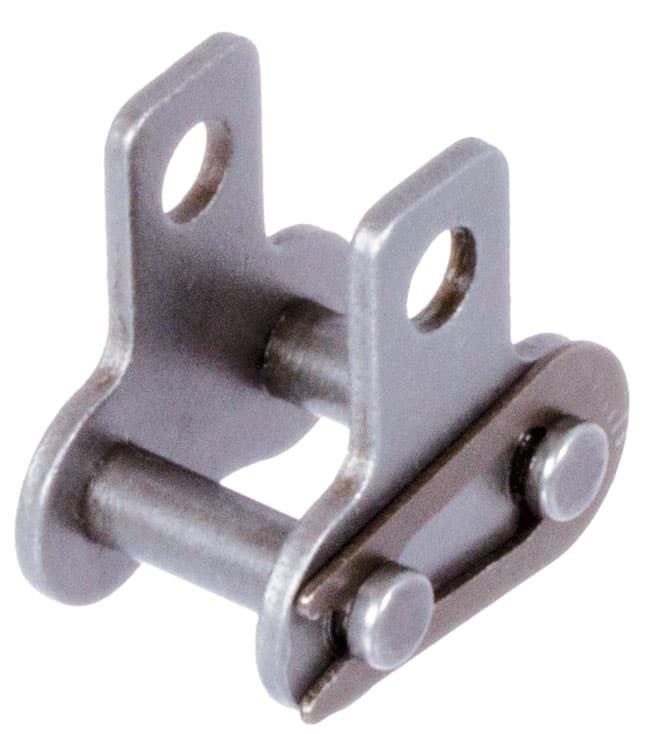

Chain connecting link type 11 / E with straight attachments 12 B-1-M1 attachments slim version on both sides stainless steel 1.4301
Manufacturer part no. 10799332
$10.14≈ 8.91 €
Price summary
Listed by MÄDLER at €8.91. Delivered to France, including shipping, VAT and any customs duty, it comes to about €28.69. Prices last checked on 2026-09-29.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €8.91 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.78 |
| Total delivered | €28.69 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 28 g |
Other characteristics
| Center distance from pin to hole at the attachme | 21 mm |
| Flansch width | 16 mm |
| Height of attachments up to pin | 26.6 mm |
| Hole diameters | 6.6 mm |
| Inner width between outer links | 15.75 mm |
| Number of strands | 1 |
| Pitch | 19.05 mm |
| Thickness of attachment | 1.8 mm |
| Din iso no | 12 B-1 |
| Material | Stainless steel (304) |
| Surface | Blank |
| Version | Both sided |
Description
Material: Stainless steel 1.4301 (AISI 304). With spring clip. For stainless simplex roller chains. With good chemical resistance. Main dimensions according to DIN ISO 606 (ex DIN 8187).
