MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

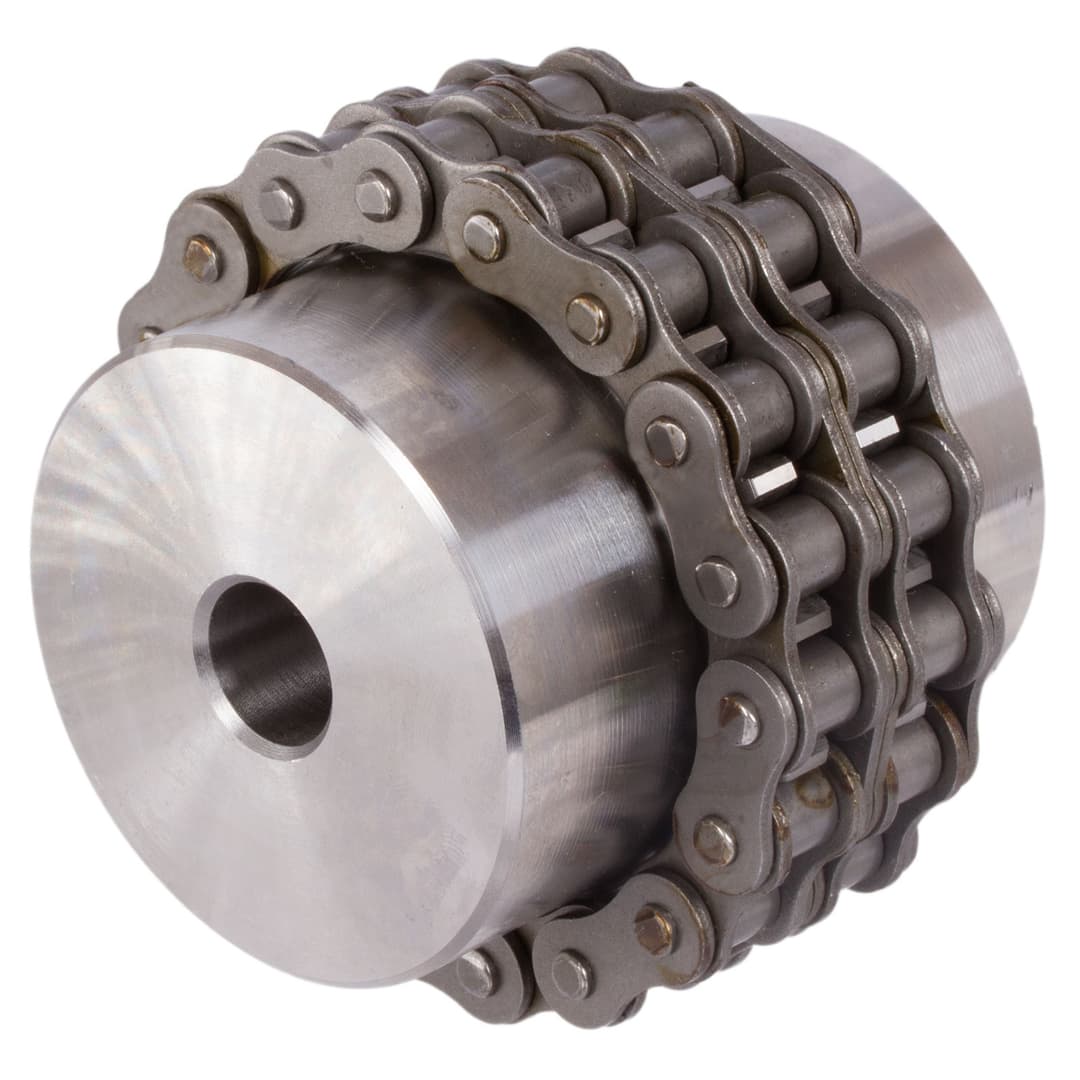

Chain coupling pitch 3/8×7/32″ 18 teeth nominal torque 95Nm
Manufacturer part no. 14030100
$28.63≈ 24.86 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €24.86 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.97 |
| Total delivered | €47.83 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 968.715 kg·cm |
| Weight | 780 g |
Other characteristics

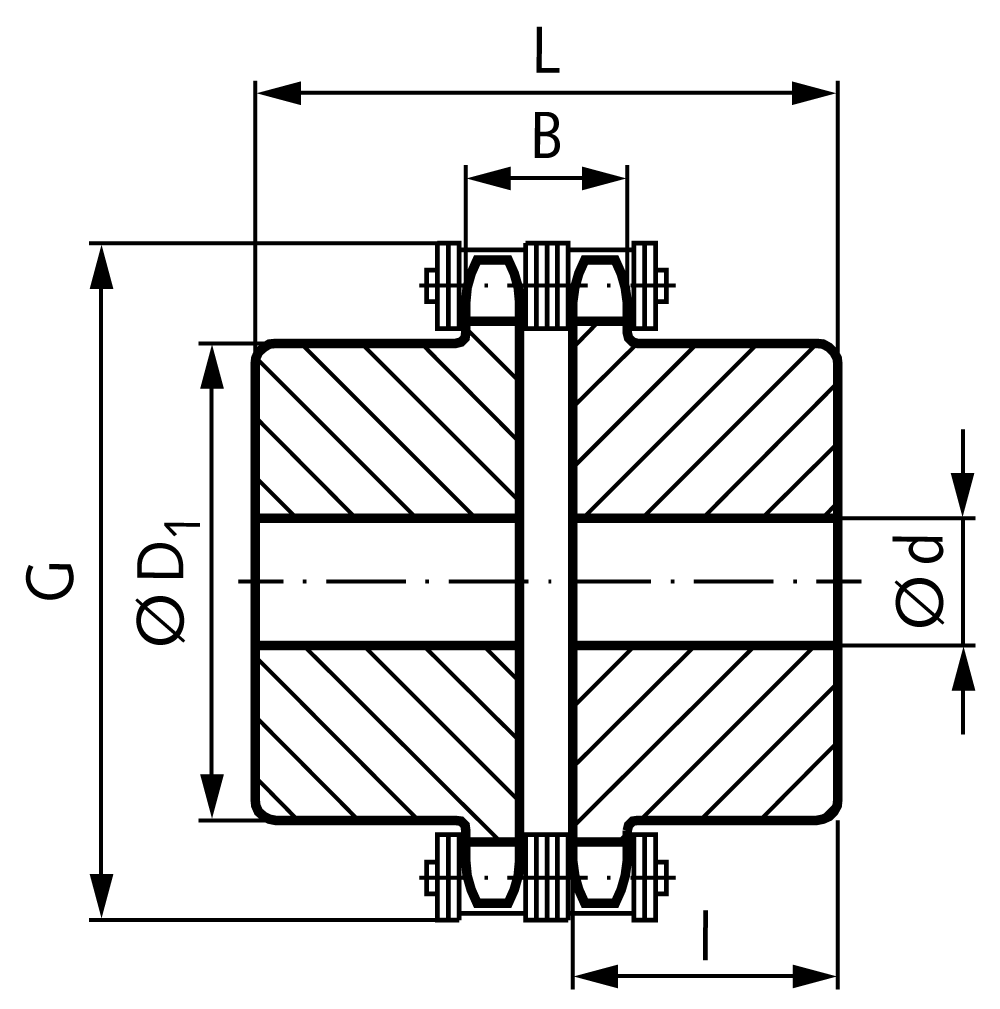

| Hub diameter | 45 mm |
| Length of each sprocket | 25 mm |
| Max misalignment angle | 0.5 ° |
| Max misalignment axial | 0.2 mm |
| Max misalignment radial | 0.2 mm |
| Max outer diameter | 63.9 mm |
| Max torque | 95 Nm |
| Min bore diameter | 12 mm |
| Mounting distance over tooth flanks | 15.2 mm |
| Temperature max. | 220 °C |
| Temperature min. | -30 °C |
| Total length | 55 mm |
Description
Material: Steel, with double-strand chain DIN ISO 606 (ex DIN 8187). The couplings are delivered unassembled. The chain is packed seperately. Number of teeth = 18. -Elastic transmission of torque. -Fast declutching by simply loosening the chain. -Shafts do not need to be exactly aligned. -No axial shaft clearance permissible. Temperature range: -30°C to +220°C. *Selection according to the ratio of driving power to speed (P/n), the nominal torque must not be exceeded (incl. operating factor).
Similar products
MÄDLERIn stock

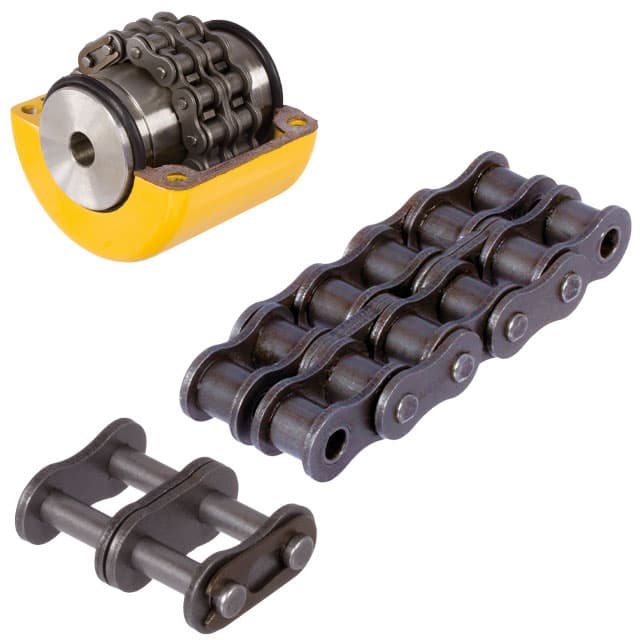

Replacement chain for chain coupling type 6020 12 A-2 length 20 links including spring clip link
€22.64$26.07
View at seller ↗MÄDLERIn stock
Replacement chain for chain coupling type 6018 12 A-2 length 18 links including spring clip link
€20.43$23.52
View at seller ↗
MÄDLERIn stock

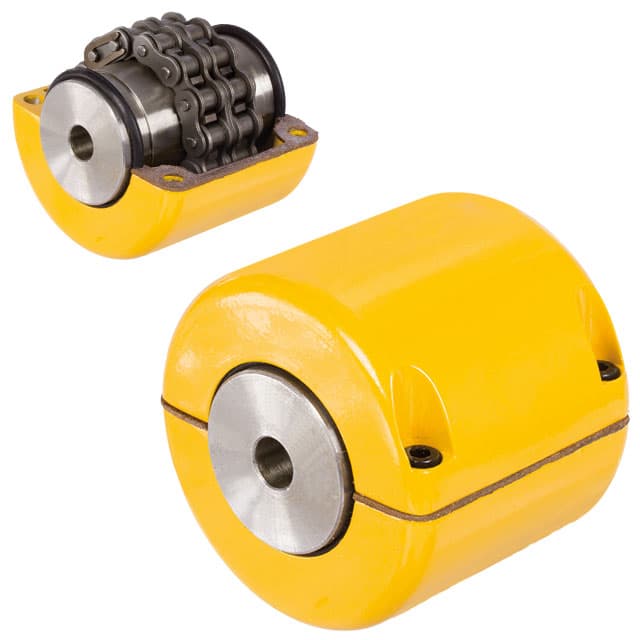

Chain coupling type 6020 12 A-2 20 teeth nominal torque 770 Nm with casing
