Tensioning element Boomerang size 2 normal force 175 N hard 220 N
Manufacturer part no. 14080209
$225.11≈ 195.49 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €195.49 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €42.10 |
| Total delivered | €252.59 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 750 g |
Other characteristics

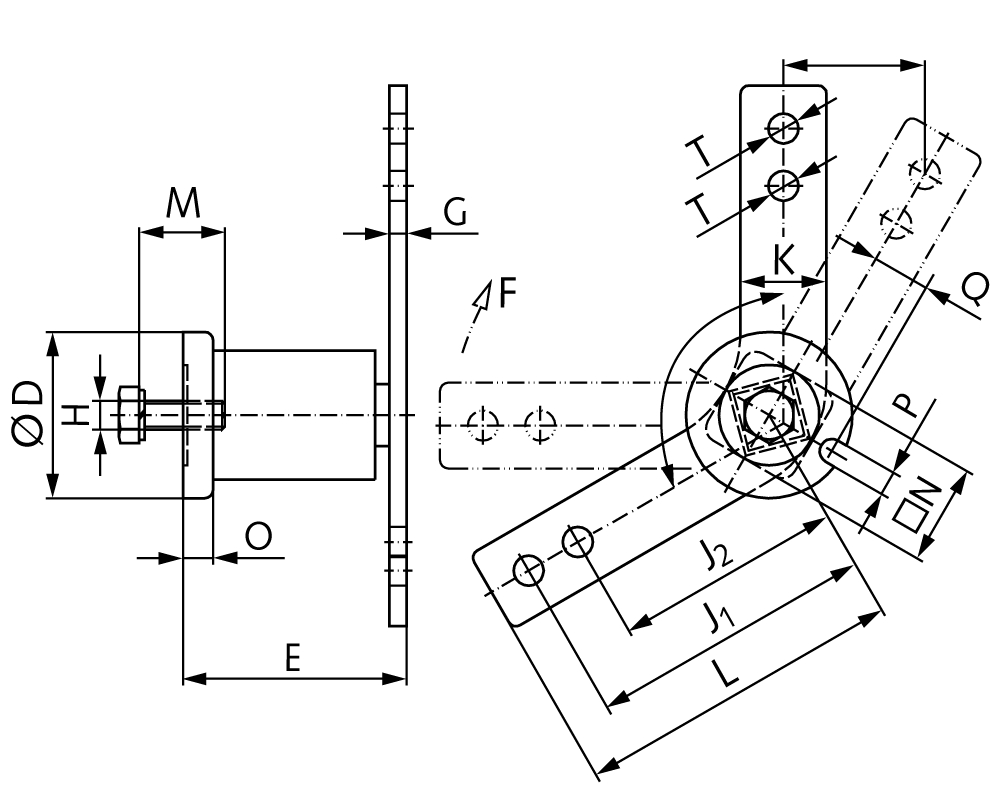

| Center distance to mounting groove | 25.3 mm |
| Center distance to t hard | 80 mm |
| Center distance to t normal | 100 mm |
| Flange diameter mounting side | 58 mm |
| Flange width mounting side | 10.5 mm |
| Hole diameter | 10.5 mm |
| Length of tensioner lever | 115 mm |
| Lever width | 30 mm |
| Max tensioning area at t hard | 40 mm |
| Max tensioning area at t normal | 50 mm |
| Max tensioning force at t hard | 220 N |
| Max tensioning force at t normal | 175 N |
Description

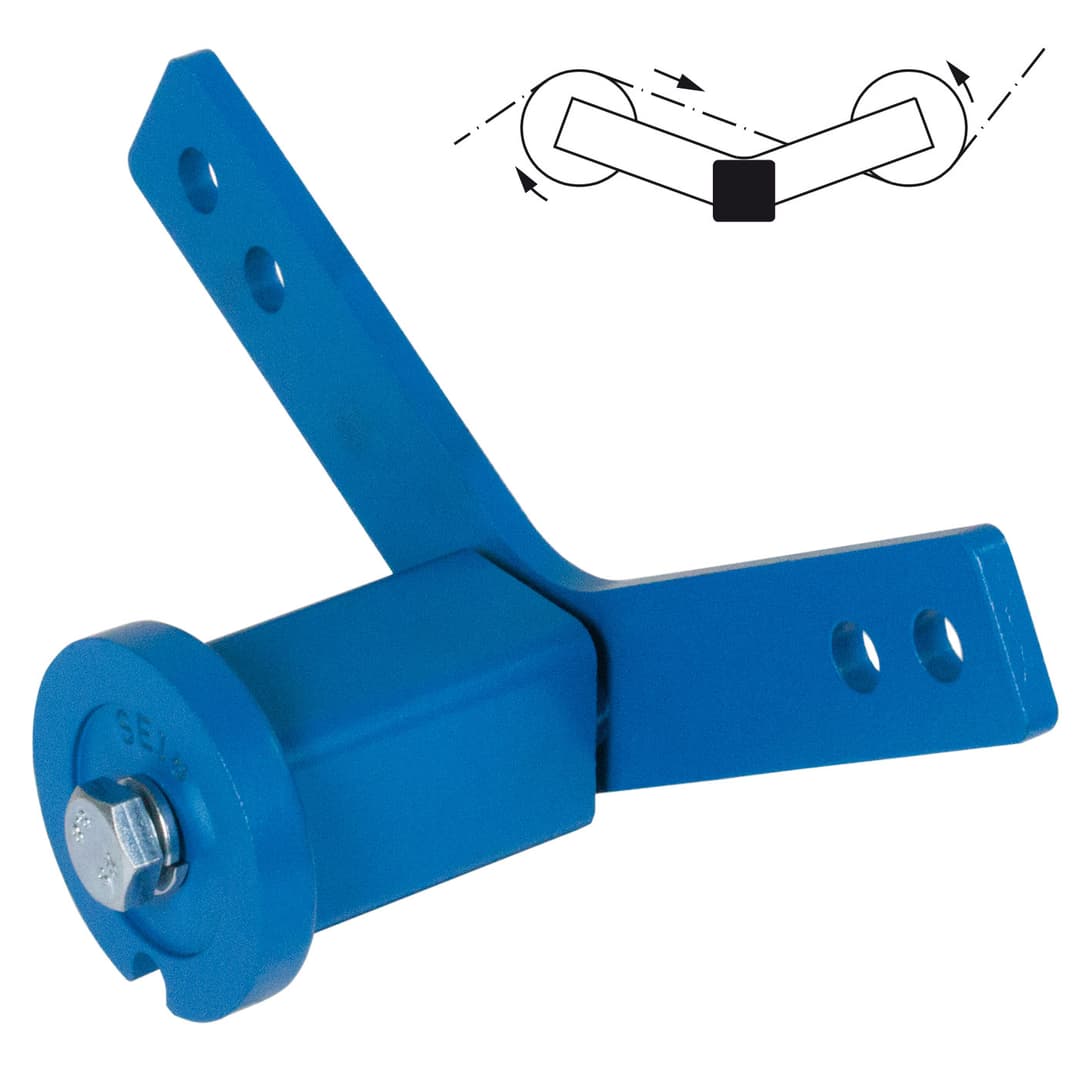

Material: Housing sintered steel, lever St52. These tensioning elements are used to compensate the slack in extremely long chain drives. The slack length passes in an S-shape through the supplied sprockets or pulleys so that the lever works as a compensator. This system thus offers a triple compensation of the slack compared to standard tensioners.
