MÄDLERMÄDLER· V-Belts, Pulleys, Accessories

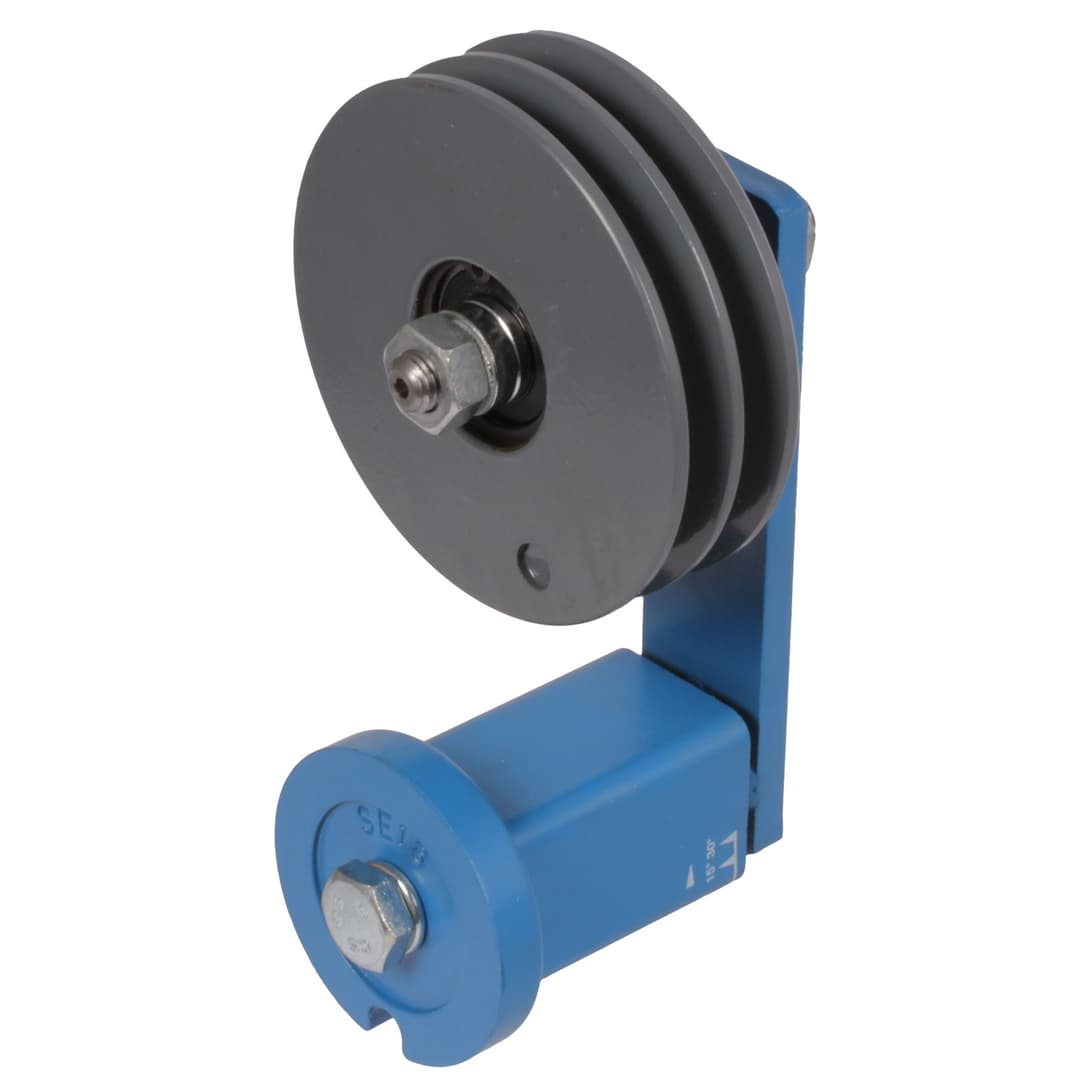

V-belt tensioner 810N profile XPB, SPB and B (17) 2 grooves Dw 125mm
Manufacturer part no. 14085402
$438.83≈ 381.09 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €381.09 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €79.22 |
| Total delivered | €475.31 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 5.3 kg |
Other characteristics

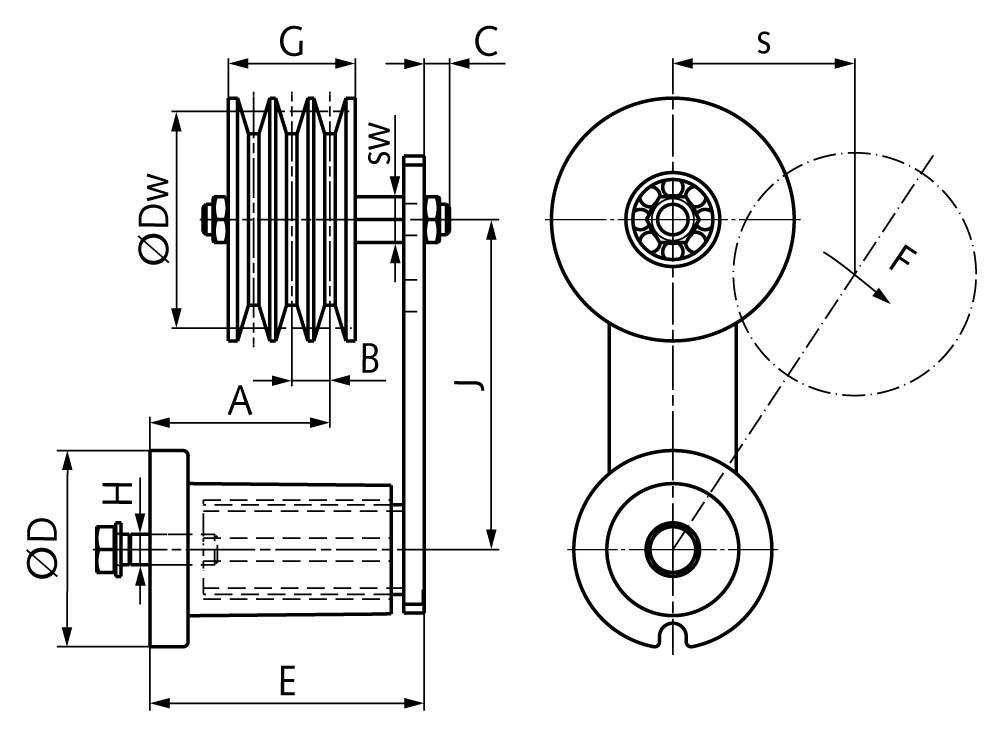

| Center distance between tensioning wheel and mou | 130 mm |
| Flange diameter mounting side | 78 mm |
| Groove distance | 19 mm |
| Max tensioning area | 65 mm |
| Max tensioning force | 810 N |
| Number of grooves | 2 |
| Overhang screw head | 19 mm |
| Pulley width | 44 mm |
| Reference diameter | 125 mm |
| Tensioner | 3 |
| Total width of tensioner elements | 108 mm |
| Wrench size of tensioning axis | 27 mm |
Description
Material: Housings up to Ø 78 mm made of sintered steel, over Ø 78 mm made of grey cast iron GG20, lever St52, V-belt pulley cast steel. Matching narrow V-belts DIN 2215 und DIN 7753.Pulley with sealed ball bearings, permanently lubricated. Measur A of the pulley can be adjusted by distance-washers on the axis, which is screwd onto the tensioner. Can be used for both tensioning directions.
