MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

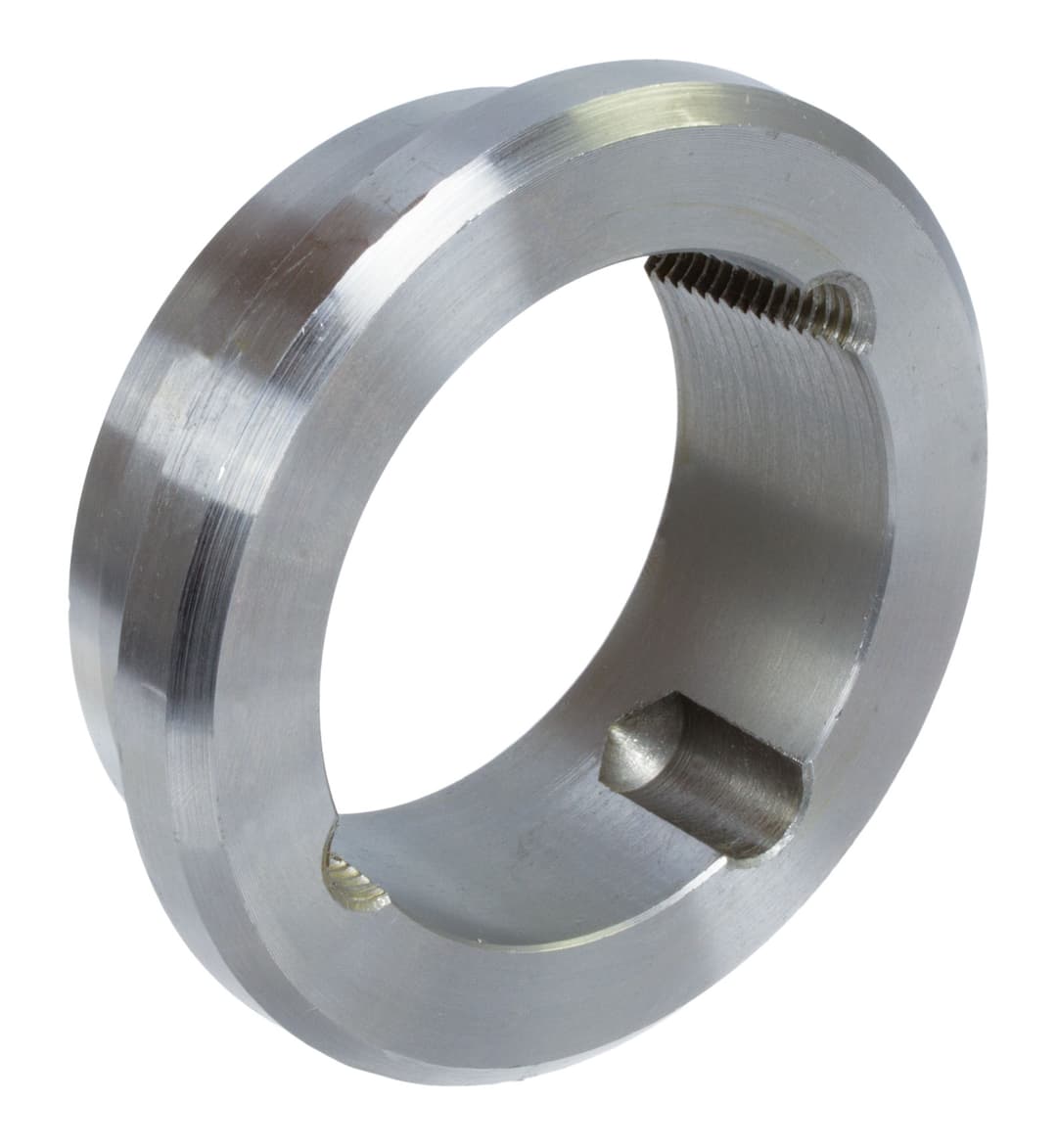

Welding hub for taper bush 3030 outside diameter 152mm material steel
Manufacturer part no. 14090108
$131.30≈ 114.03 €
In stock — 8 unitslead time 14 d
Estimated landed cost
| Item | €114.03 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €25.81 |
| Total delivered | €154.84 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

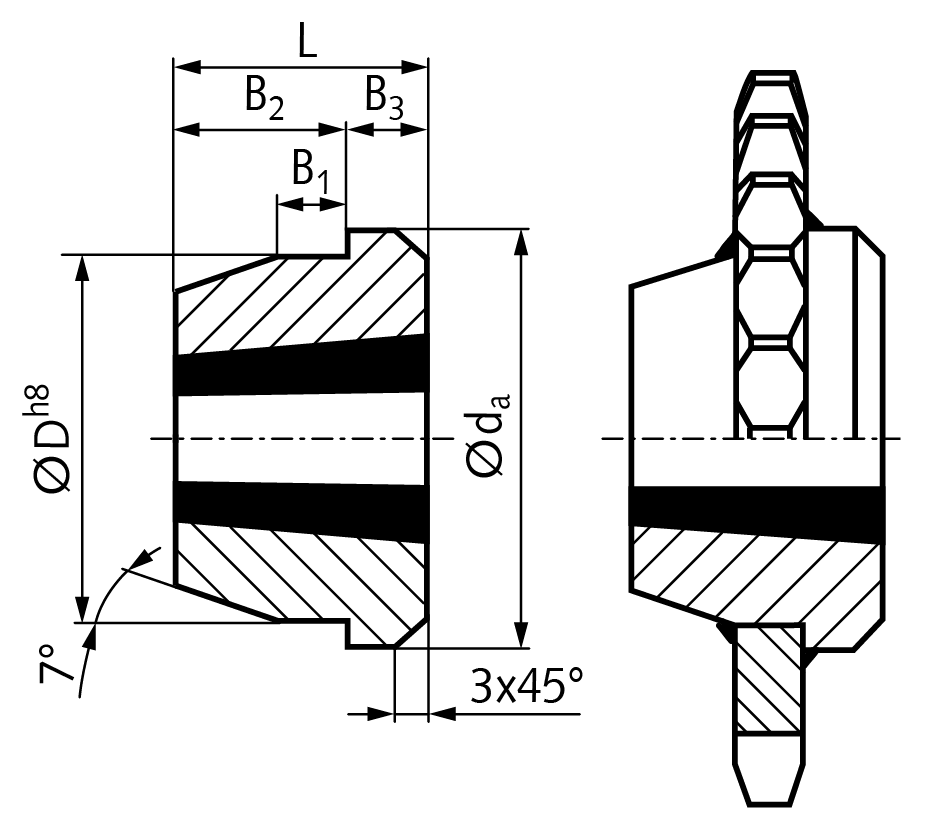

Mechanical
| Weight | 3.6 kg |
Other characteristics
| Diameter of assembling surface | 130 mm |
| Flange width da | 25 mm |
| For clamp bushing | 3 030 |
| Max bore diameter | 75 mm |
| Min bore diameter | 30 mm |
| Outer diameter | 152 mm |
| Total length | 76 mm |
| Width of assembling surface | 19 mm |
| Width of outer cone incl assembling surface | 51 mm |
| Material | Steel (A572) |
| Surface | Blank |
Description
Material: Steel (St52 or comparable), good weldable. Hub for fixing a chain plate wheel or similar parts with a low priced taper bush onto a shaft. Taper bush and chain plate wheel have to be ordered separately. Recommended bore tolerance: H8. Before welding, a taper bush should be mounted with a piece of shaft into the welding hub to avoid deforming by heat. Other sizes for taper bushes up to type 5050 are available at short delivery time. In this youtube video we show the mounting and demounting of taper bushes:Video clip (3.5 Minutes)
