MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

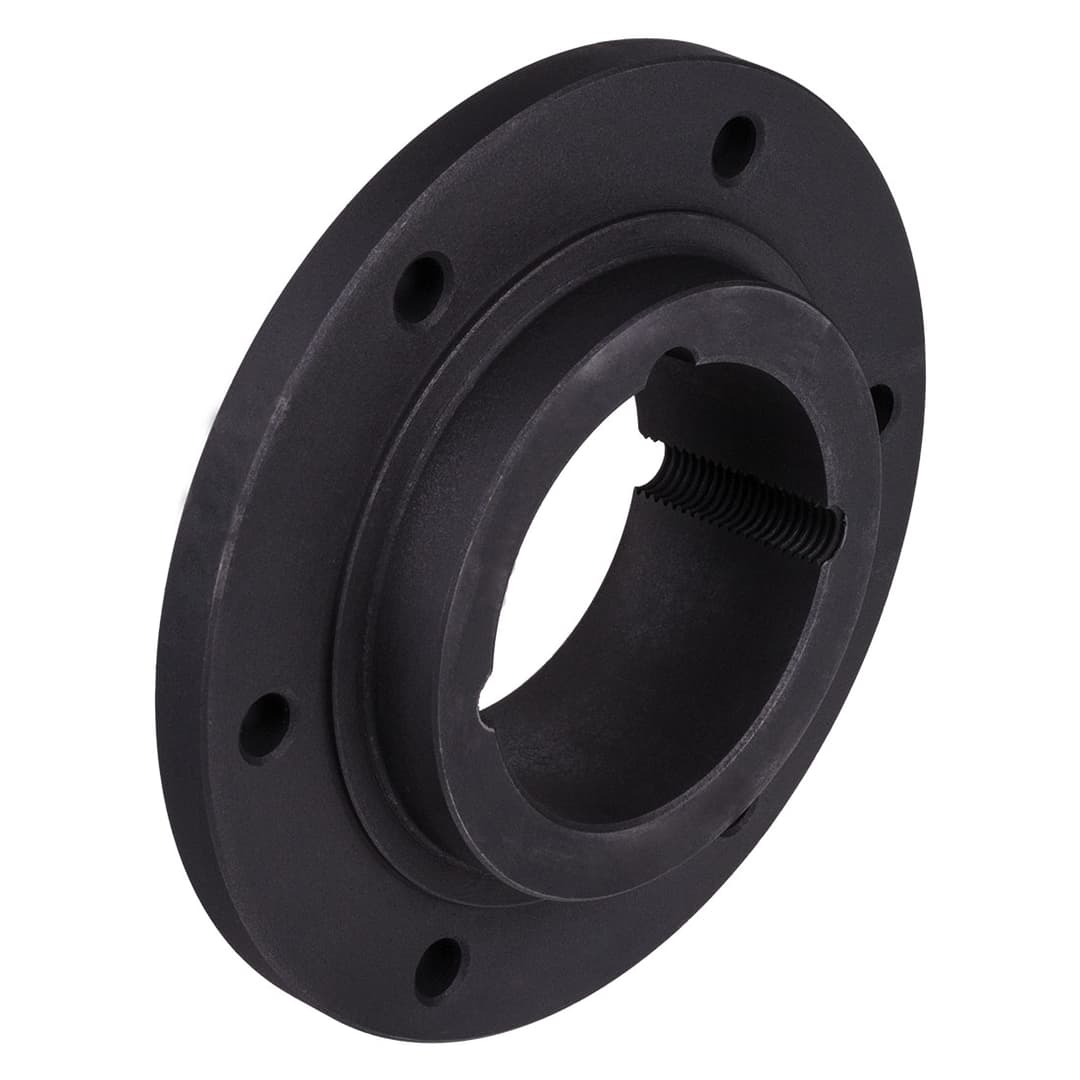

Bolt-on hub for taper bush 1610 outside diameter 130mm material cast iron
Manufacturer part no. 14090125
$33.74≈ 29.30 €
On backorderlead time 14 d
Estimated landed cost
| Item | €29.30 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.86 |
| Total delivered | €53.16 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

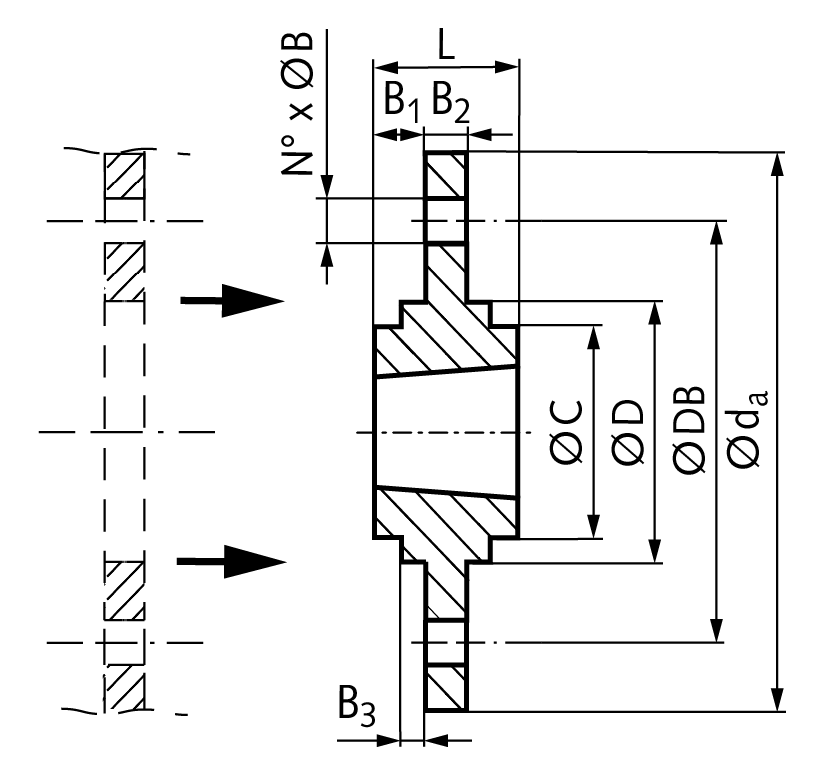

Specifications (automatically extracted)
Mechanical
| Weight | 1 kg |
Other characteristics
| Diameter of mouning area | 90 mm |
| Flange width da | 7.5 mm |
| For clamp bushing | 1 610 |
| Hole circle diameter of mounting holes | 110 mm |
| Hole diameter | 7.5 mm |
| Hub diameter | 80 mm |
| Hub width | 9 mm |
| Outer diameter | 130 mm |
| Quantity of holes | 6 mm |
| Total length | 25 mm |
| Width of assembling surface | 2.5 mm |
| Angular distance per each hole | 60° ° |
| Material | Grey cast iron (A48) |
Description
Material: Grey cast iron GG25. Product no. 14090147 from steel. Hub for fixing a chain plate wheel or similar parts with a low priced taper bush onto a shaft. The wheel must get a center hole Ø D (recommended tolerance: H8) and bores for mounting bolts. It can be mounted on the right side or left side. The bolt length depends on the wheel width. Bolts and nuts are not included. The wheel and the taper bush have to be ordered separately. In this youtube video we show the mounting and demounting of taper bushes: Video clip (3.5 Minutes)
