MÄDLERMÄDLER· Timing Belts and Pulleys
Flange for timing belt pulley thickness 1mm Ø 60 x 57 x 47mm steel zinc plated
Manufacturer part no. 16010214
$4.47≈ 3.88 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €3.88 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.78 |
| Total delivered | €22.66 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

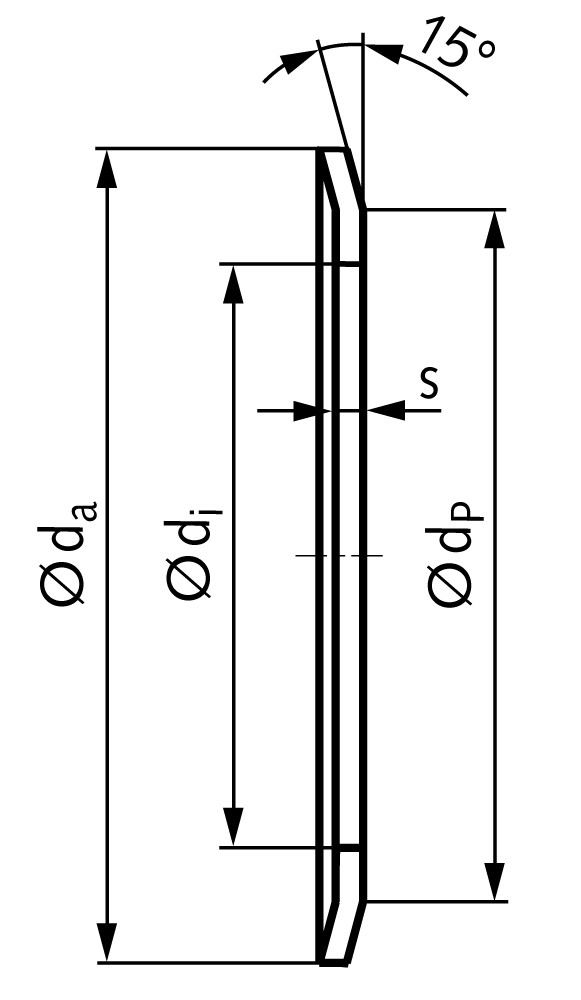

Specifications (automatically extracted)
Mechanical
| Weight | 10 g |
| Dimensions | 60x57x47mm |
Other characteristics
| Inner diameter | 47 mm |
| Kink point diameter | 57 mm |
| Outer diameter | 60 mm |
| Thickness | 1 mm |
| Material | Steel |
| Surface | Zinc-plated |
Description
Material: Steel, zinc-plated. Flanges for timing belt pulleys, for custom-made parts or serial production. For economical reason, normally the flanges are mounted only at the smaller pulley. Often, the flanges get fixed by beading: On a turntable, with a rolling tool, hub material will get shaped over the flange. A beading material overhang of 0.5mm is recommended. Sold by piece. Other sizes are available at short delivery time.
