MÄDLERMÄDLER· Timing Belts and Pulleys

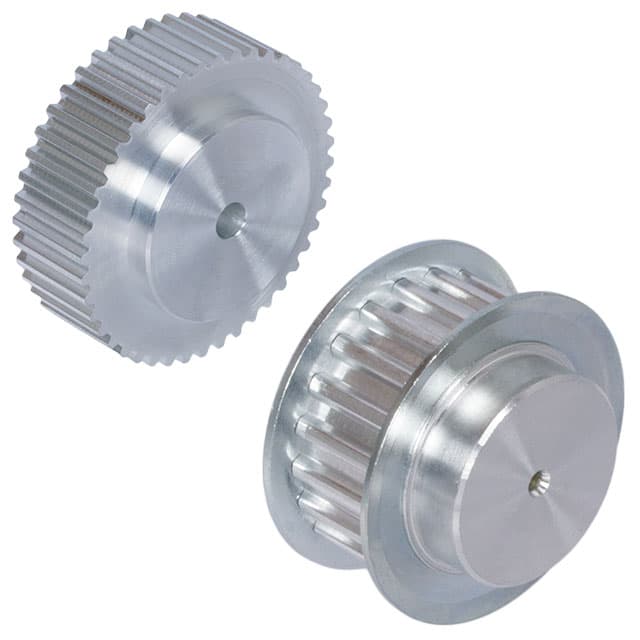

Timing belt pulley T2.5 material aluminium 14 teeth for belt width 10mm 20 T2.5/14-2
Manufacturer part no. 16031400
$12.26≈ 10.65 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €10.65 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.13 |
| Total delivered | €30.78 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 6 g |
Other characteristics
| Belt width | 10 mm |
| Hub diameter | 14 mm |
| No of teeth | 14 |
| Outer diameter of flanges | 15 mm |
| Outer diameter of pulley | 10.64 mm |
| Pitch circle diameter | 11.14 mm |
| Tooth width | 13 mm |
| Total length | 20 mm |

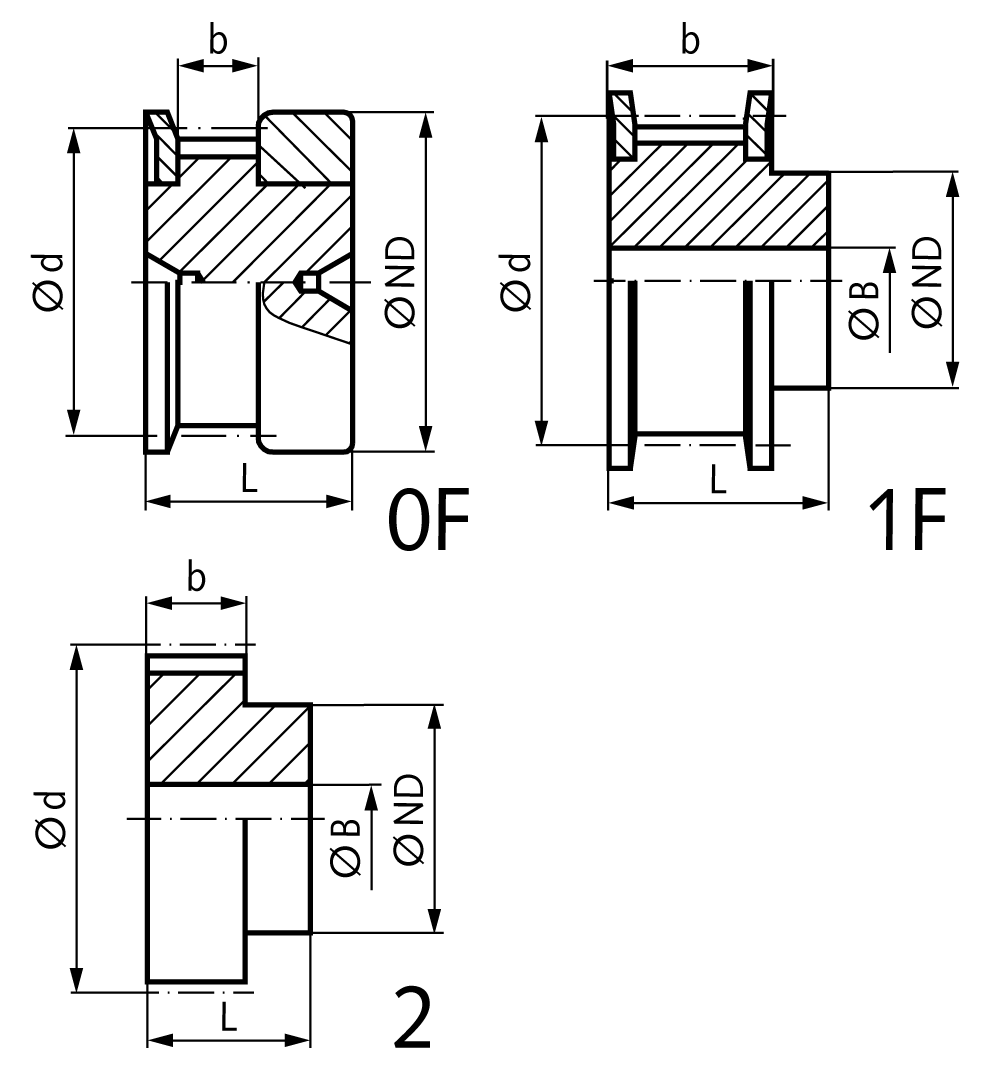

| Version | 0 F |
| Material | Aluminum |
| Pilot hole | Without bore mm |
| Profile | T2.5 |
| Surface | Blank |
| Type | 20T2.5/14-2 |
Description
Material: Aluminium similar EN AW2017A. Flanges zinc-plated steel.
