MÄDLERMÄDLER· Timing Belts and Pulleys
Timing belt pulley HTD 8M material steel 56 teeth for belt width 20mm
Manufacturer part no. 17412800
$82.14≈ 71.33 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €71.33 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €17.27 |
| Total delivered | €103.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.85 kg |
Other characteristics

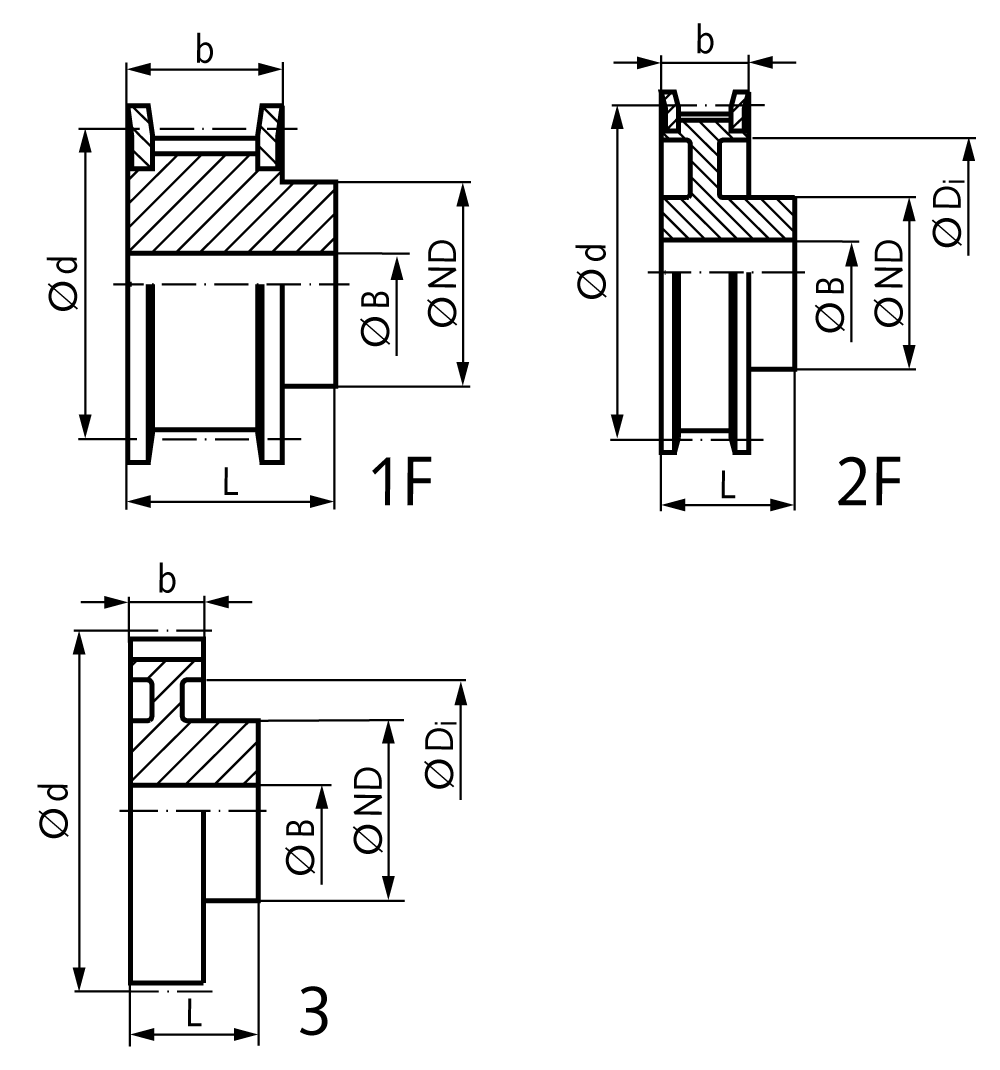

| Belt width | 20 mm |
| Bore | 45 mm |
| Hub diameter | 80 mm |
| No of teeth | 56 |
| Outer diameter of flanges | 148 mm |
| Outer diameter pulley | 141.23 mm |
| Pilot hole | 14 mm |
| Pitch circle diameter | 142.6 mm |
| Total length | 38 mm |
| Version | 2 F |
| Material | Steel |
| Profile | HTD 8M |
| Surface | Phosphated |
Description
Material: Up to a teeth number of 72 phosphated steel, from a teeth number of 80 phosphated grey cast iron GG25. The functionability of a belt drive is largely influenced by the quality of the used pulley. HTD pulleys are precision components, manufactured pitch-true with special cutters. This leads to a precise meshing of teeth.
