MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

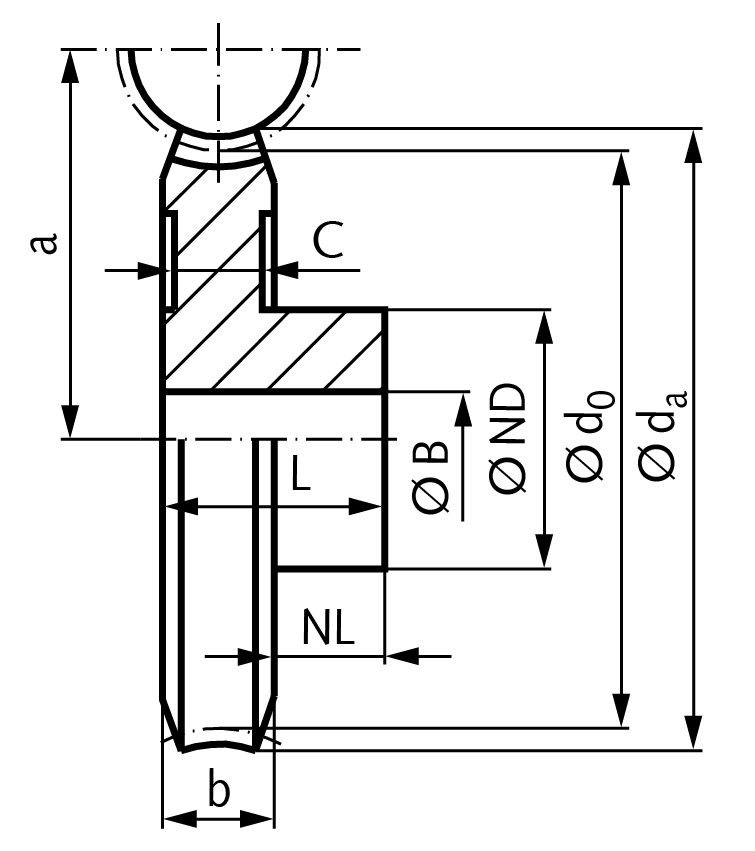

Worm wheel made of bronze module 0.75 100 teeth single-thread right hand
Manufacturer part no. 30033200
$90.68≈ 78.75 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €78.75 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.75 |
| Total delivered | €112.50 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 123 g |
Other characteristics
| Bore | 5 mm |
| Max torque | 5.4 Nm |
| No of teeth | 100 |
| Outer diameter | 76.7 mm |
| Material | Bronze |
| Module | 0.75 single-thread RH |
| Ratio | 100 : 1 |
| Surface | Blank |
Description
Material: G-CuSn12, with milled out, hollow teeth. With one-sided hub. Single-thread worm gears to be paired with single-thread worms. If the module (and number of threads) are matching, various ratios at various axle distances can be realized. Pressure angle 20°. Efficiency: approx. 0,58 Limited self-locking capacity.
