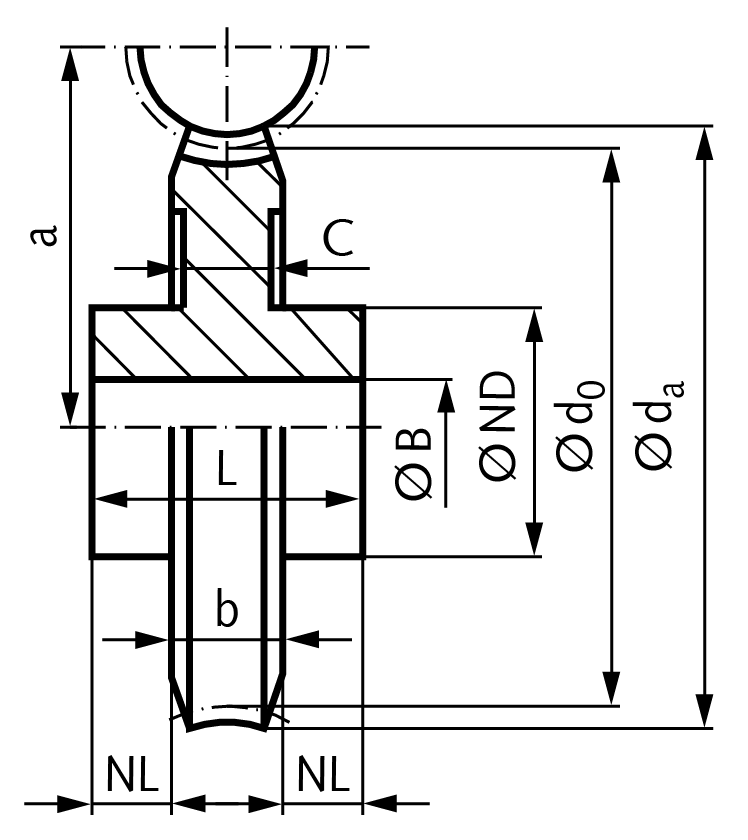

Worm wheel made of bronze, module 1.5 20 teeth single-thread right hand
Manufacturer part no. 30100700
Manufacturer part no. 30100700
Listed by MÄDLER at €50.18. Delivered to France, including shipping, VAT and any customs duty, it comes to about €78.22. Prices last checked on 2026-10-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €50.18 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.04 |
| Total delivered | €78.22 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 130 g |
| Bore | 10 mm |
| Max torque | 2.3 Nm |
| No of teeth | 20 |
| Outer diameter | 34.7 mm |
| Material | Bronze |
| Module | 1.5 single-thread RH |
| Ratio | 20 : 1 |
| Surface | Blank |
Material: G-CuSn12, with milled out, hollow teeth. With double-sided hub. Single-thread worm gears to be paired with single-thread worms. If the module (and number of threads) are matching, various ratios at various axle distances can be realized. Pressure angle 20°. Efficiency: approx. 0,49 Not self-locking.
