MÄDLERMÄDLER· Mechanics & transmission

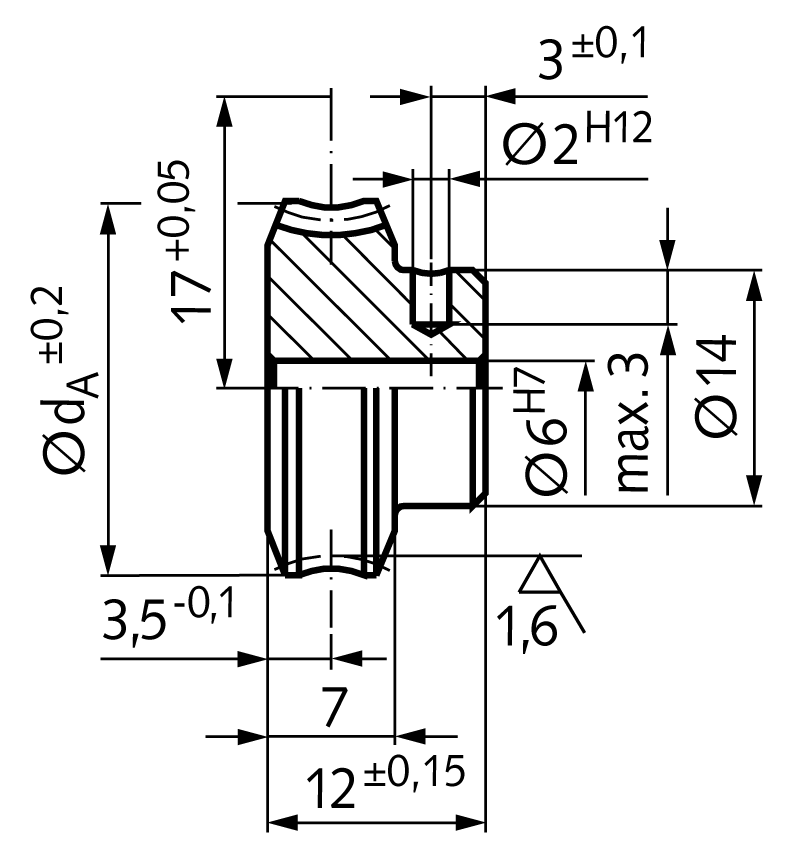

Precision worm wheel centre distance 17mm i=30 30 teeth
Manufacturer part no. 32003000
$39.54≈ 35.22 €
Price summary
Listed by MÄDLER at €35.22. Delivered to France, including shipping, VAT and any customs duty, it comes to about €60.26. Prices last checked on 2026-10-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €35.22 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.04 |
| Total delivered | €60.26 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Also available second-hand on eBay
FOUNDRY NETWORKS 32003-000 / 32003000 (USED)
Used · sold by radwell_international · ships from US
Imported from outside the EU — duties and VAT included in the delivered cost; customs formalities and delays are not
Visit ↗€32.02
billed $35.94
€96.76 delivered
Third-party listings on eBay, matched to this product by its part number or title. Robotitem neither sells nor warrants these items: condition, stock and lead times are the seller's, and a listing disappears once sold. Delivered cost includes the seller's actual shipping.
Specifications (automatically extracted)
Mechanical
| Weight | 26 g |
Other characteristics
| Max torque | 1.9 Nm |
| Module | 0.75 |
| No of teeth | 30 |
| Outer diameter | 24.6 mm |
| Helix angle | 3°45 ° |
| Material | Brass |
| Ratio | 30 : 1 |
| Surface | Blank |
Description
Material: Special brass CuZn37Mn3Al2PbSi/So. Pressure angle 15°. The gear wheels can only be used with worms having the same centre distance and the same transmission. * Worm only polished, worm gear with helical gearing. ** Worm with 9 mm hub diametre only. *** The figures stated for the efficiency are only reference values, since – besides the lead angle – also mounting, lubrication, speed and assembly have an influence on the efficiency.
